Location:
Naples, FL
Price:
$139,000 USD
Model:
D36x50 Series II

Specifications

Condition:
used
Year:
2011
Stock number:
17350
Type:
FIRESTICK II
Width:
82"
Height:
75"
Length:
228"
Thrust:
36,000 lb
Torque:
4995 ft-lb
Weight:
81 lb
Max flow:
50 gpm
Pullback:
36,000 lb
Fuel type:
Diesel
Max speed:
2400 rpm
Fluid tank:
45 gal
Rod loader:
Yes, semi-automated
Entry angle:
17 deg
Displacement:
276 cu-in
Max pressure:
850 psi
Pipe diameter:
2.375"
Joint diameter:
2.75"
Make and model:
John Deere Diesel 4045 (4.5L) Tier 3 Turbo
Min bend radius:
108'
Rated engine rpm:
2400 rpm
Max spindle speed:
227 rpm
Min bore diameter:
3.5"
Fuel tank capacity:
45 gal
Ground drive speed:
3 mph
Max carriage speed:
175 fpm
Max spindle torque:
4995 ft-lb
Number of cylinders:
4
Emissions compliance:
Tier 3
Engine cooling system:
15.5 qt
Rod carrying capacity:
500'
Hydraulic tank capacity:
45 gal
Manufacturer's gross hp rating:
140 hp
Subcategory:
Hdd drills

Description

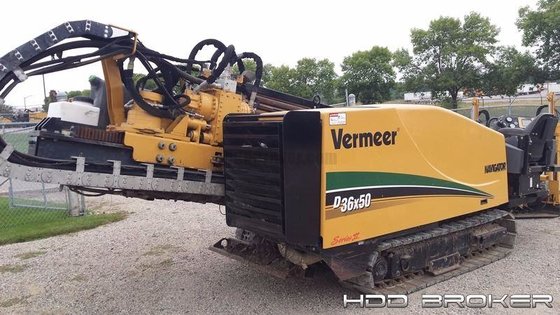

General Description: 2011 Vermeer D36x50 Series II Directional Drill: -3,128 hours
Locating System(s): Integrated Display.
Pipe: 600' of 15' Length, 2.375" Firestick I Drill Stem.
Accessories: Drill Head.
Recent Work/Modifications: Reconditioned at Vermeer by certified Vermeer Technicians. -Full Function test -Replace Vice horseshoes and bolts -Replace Ignition switch -Replace Water ball valve -Replace Rod loader slides and adjust -Replace Turbo hose line -Replace Coolant temp gauge -Replace Valve so remote lockout works properly -Miscellaneous minor repairs/adjustments
Additional Information: -Rubber Tracks -140 HP John Deere Tier 3 Engine -4,995 lbs of Rotational Torque -36,000 lbs of Thrust and Pullback -Rod Loader -Aplex -Auto Greaser -Rack and Pinion
