Top Seller
1988 23.6" Swing 35" Centers
Location:
Harrison, NJ
Price:
$19,500 USD
Manufacturer:
Mori seiki lathes
Model:
SL-35A/750
Distance between Centers:
35"
Spindle Nose:
A2-8

Specifications

Condition:
used
Year:
1988
Serial number:
97
Stock number:
153264
Spindle nose:
A2-8
Spindle speed:
12-3500 RPM
Travel x-axis:
9.4"
Travel z-axis:
33.7"
Approx. weight:
18,000 LBS.
Swing over bed:
23.6"
Hole thru spindle:
3.1"
Approx. dimensions:
142.5"x71.5"x84"
Max. machining length:
30.7"
Rapid traverse x-axis:
472.4"
Rapid traverse z-axis:
590.6"
Swing over cross slide:
16.7"
Max. machining diameter:
16.5"
Distance between centers:
35"
Main motor (30 min./ cont):
AC22/18.5 KW
Subcategory:
Cnc machines

Description

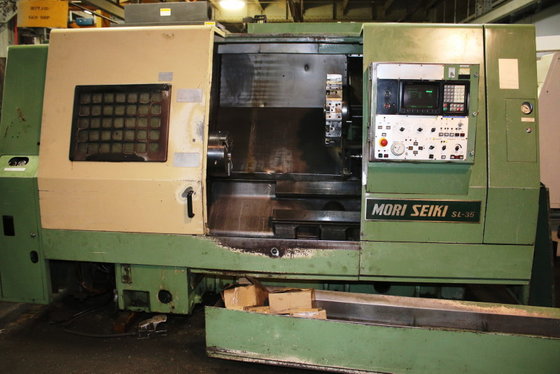

MORI SEIKI CNC TURNING CENTER
MODEL: SL-35A NEW: 1988
SWING OVER BED......................... 23.6"
SWING OVER CROSS SLIDE................. 16.7"
DISTANCE BETWEEN CENTERS............... 35"
MAX. MACHINING DIAMETER................ 16.5"
MAX. MACHINING LENGTH.................. 30.7"
TRAVEL X-AXIS.......................... 9.4"
TRAVEL Z-AXIS.......................... 33.7"
SPINDLE SPEED.......................... 12-3500 RPM
SPINDLE NOSE........................... A2-8
HOLE THRU SPINDLE...................... 3.1"
RAPID TRAVERSE X-AXIS.................. 472.4"
RAPID TRAVERSE Z-AXIS.................. 590.6"
MAIN MOTOR (30 MIN./ CONT)............. AC22/18.5 KW
APPROX. WEIGHT......................... 18,000 LBS.
APPROX. DIMENSIONS..................... 142.5"x71.5"x84"
EQUIPPED WITH:
- FANUC 10T CNC CONTROL W/RS 232 PORT
- 12" 3-JAW HYD CHUCK
- 12 STATION TURRET
- TAILSTOCK
- ALL AVAILABLE TOOL HOLDERS
- ALL AVAILABLE MANUALS
To view a video of this machine copy and paste the following link in your web browser:
