Top Seller
2004 100" X Axis 25"
Location:
Harrison, NJ
Price:
$69,500 USD
Model:
FTV-640-2500
Spindle Taper:
….. BT-40

Specifications

Condition:
used
Year:
2004
Serial number:
7076-F00-K00011
Stock number:
153598
Table size:
119.7" X 25"
Condition 2:
**** EXCELLENT ****
Spindle motor:
16/25 HP
Spindle speed:
5,000 RPM
Spindle taper:
….. BT-40
X-axis travel:
100" 2500mm
Y-axis travel:
25" 635mm
Z-axis travel:
26" 670mm
Machine weight:
35,000lbs
Spindle torque:
168/259 FT-LBS
Max tool length:
12.99"
Max tool diameter:
3.15"
Machine floor space:
18'X 12' 5.5X3.5m
Table load capacity:
6,600 LBS
Tool magazine capacity:
36 ATC
Subcategory:
Cnc machines

Description

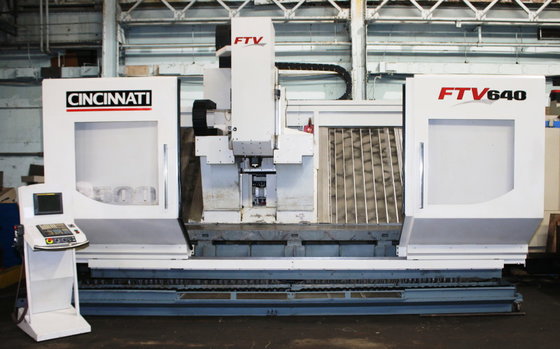

CINCINNATI TRAVELING COLUMN - FIXED TABLE
VERTICAL MACHINING CENTER
MODEL:FTV-640-2500 YEAR:2004
8600 Total Run Hours
SPECIFICATIONS:
X-AXIS TRAVEL .................... 100" 2500mm
Y-AXIS TRAVEL .................... 25" 635mm
Z-AXIS TRAVEL .................... 26" 670mm
SPINDLE SPEED .................... 5,000 RPM
SPINDLE MOTOR .................... 16/25 HP
SPINDLE TORQUE ................... 168/259 FT-LBS
SPINDLE TAPER .................….. BT-40
TOOL MAGAZINE CAPACITY ........... 36 ATC
MAX TOOL DIAMETER ................ 3.15"
5.51" ADJACENT POCKET
MAX TOOL LENGTH .................. 12.99"
TABLE SIZE........................ 119.7" X 25"
TABLE LOAD CAPACITY............... 6,600 LBS
MACHINE DIMENSIONS:
Machine Floor Space .............. 18'X 12' 5.5X3.5m
MACHINE WEIGHT ................... 35,000lbs
EQUIPPED WITH:
FANUC 18i-MB
CONTROL
HEIDENHAIN
GLASS SCALES on all 3 Axes
Factory Spec - Positions to 3 microns, repeats to 1 micron
Walk-Around MPG/PLC Machine Control Pendant
High Torque Spindle Option
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
