WPI WELLKIN Pipe Handling Equipment
Location:
Pearland, TX
Manufacturer:
WPI WELLKIN
Model:
30500 Electric HPU

Specifications

Condition:
new
Stock number:
30500
Rental:
No
Division:
Equipment
Subcategory:
Tongs - power

Description

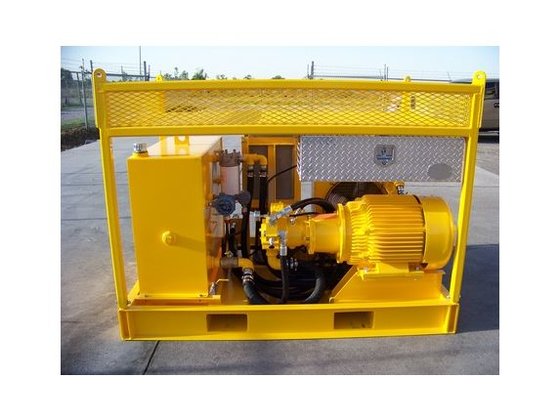

ELECTRIC HYDRAULIC POWER UNIT FOR IRON ROUGHNECK CONSTRUCTION: SKID MOUNTED, ELECTRIC DRIVEN, HYDRAULIC POWER UNIT, OPEN FRAME TYPE, LESS HOSES AND HYDRAULIC FLUID -CLASS 1, DIV. 1 (EXPLOSION PROOF) ELECTRICAL COMPONENTS -STARTER BOX FOR ELECTRIC MOTOR, START AND STOP BUTTONS, SERVICE DISCONNECT, MOTOR RESET BUTTON, POWER ON LAMP, RUNNING LAMP, LESS POWER PIGTAIL -REMOTE START/STOP ENCLOSURE, START AND STOP BUTTONS, RUNNING LAMP, WITH 100' ELECTRICAL CABLE WIRED TO STARTER BOX -ELECTRIC MOTOR, 40 HP, 460 VAC, 3 PHASE, 60 HZ, 1800 RPM, WITH 120 VAC SPACE HEATER (DUAL RATED FOR 50 HZ OPERATION) -VARIABLE DISPLACEMENT, PRESSURE COMPENSATED PUMP FOR CLOSED CENTER CIRCUIT, WITH HORSEPOWER LIMITER 3000 PSI @ 16 GPM, 1300 PSI @ 35 GPM -SYSTEM RELIEF VALVE SET @ 3300PSI -AIR OVER OIL HEAT EXCHANGER, ELECTRIC MOTOR DRIVEN -100 GALLON CARBON STEEL HYDRAULIC RESERVOIR WITH BAFFLE, LEVEL GAUGE, OIL TEMPERATURE GAUGE, CLEANOUT COVER, SUCTION STRAINER WITH ISOLATION BALL VALVE, RETURN FILTER, RETURN PRESSURE GAUGE, DRAIN PORT WITH BALL VALVE, FILLER BREATHER, LEVEL SWITCH, TEMPERATURE SWITCH TO CONTROL HEAT EXCHANGER MOTOR -0 TO 5000 PSI PRESSURE GAUGE -PRESSURE AND RETURN LINE BULKHEAD WITH QUICK DISCONNECTS -OILFIELD TYPE BASE SKID WITH DRIP PAN, DRAIN PORTS, FORK LIFT POCKETS -LIFT CAGE WITH HOSE BASKET -INDUSTRIAL PAINT AND PRIMER TO CUSTOMER'S COLOR CHOICE -OPERATIONS AND MAINTENANCE MANUAL WITH TEST CERTIFICATE -ESTIMATED WEIGHT: 3200 LBS. (DRY- NO OIL IN TANK) -ESTIMATED DIMENSIONS: 80" LONG X 54" WIDE X 62" TALL
