WPI WELLKIN Pipe Handling Equipment
Location:
Pearland, TX
Manufacturer:
WPI WELLKIN
Model:
31000 Diesel HPU

Specifications

Condition:
new
Stock number:
31000
Rental:
No
Division:
Equipment
Subcategory:
Tongs - power

Description

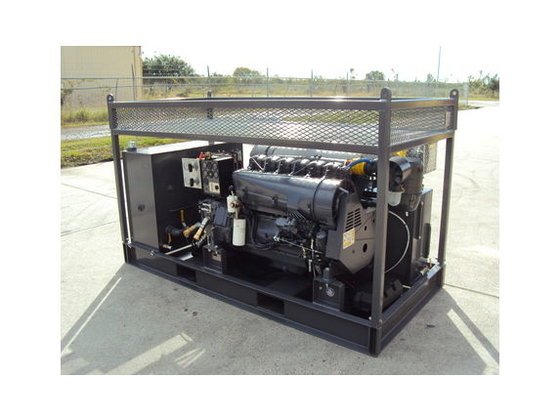

WPI WELLKIN Model 31000 DHPU - Skid mounted, diesel driven, hydraulic power unit, open frame type for operation of casing and tubing tongs Specifications: - (1) Deutz D914L06, 6 cylinder, four cycle, air cooled, naturally aspirated diesel engine, 114 HP @ 2100 RPM - (1) Instrument panel with engine speed, oil temperature and oil pressure - (1) Electric start with battery - (1) Safety package with automatic overspeed shutdown, emergency manual air intake shutdown, spark arrestor - (1) Shutdowns for low oil pressure, high oil temperature, fan belt break - (1) 45 gallon diesel fuel reservoir with level gauge, drain port with ball valve, filler breather - (1) Hydraulic throttle - (1) Gear pump for tong open center circuit, high/low valves to deliver: 3000 PSI @ 30 GPM 1500 PSI @ 60 GPM - (1) System relief valve set @ 3000 PSI - (1) Air over oil heat exchanger with hydraulic motor - (1) 100 gallon hydraulic reservoir with baffle, level gauge, oil temperature gauge, cleanout cover, suction strainer with isolation ball valve, return filter, return pressure gauge, drain port with ball valve, filler breather - (1) Panel with 0 to 5000 PSI pressure gauges, control valves for standby/work and casing/tubing modes - (1) Oilfield type base skid with drip pan, drain ports, fork lift pockets - (1) Lift cage with hose basket - (1) Aluminum diamond plate box for small parts and tools storage - (1) Industrial primer and paint one color - (1) Operation, parts and service manual -Less interconnect hoses and hydraulic fluid. - Estimated dimensions: 102” L x 48” W x 62” T - Estimated weight: 3900 lbs (dry)
