WPI WELLKIN Pipe Handling Equipment
Location:
Pearland, TX
Manufacturer:
WPI WELLKIN
Model:
31200 Electric HPU

Specifications

Condition:
new
Stock number:
31200
Rental:
No
Division:
Equipment
Subcategory:
Tongs - power

Description

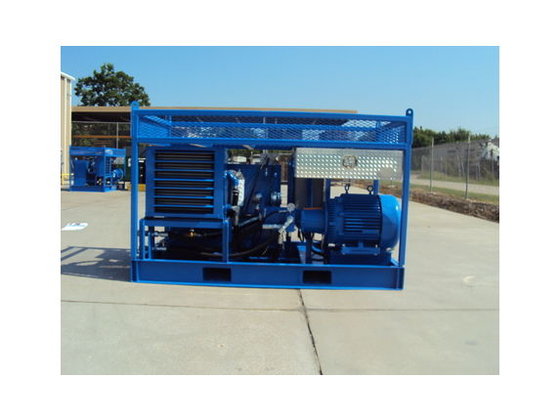

WPI WELLKIN MODEL 31200 EHPU SKID MOUNTED, ELECTRIC DRIVEN, HYDRAULIC POWER UNIT, FOR OPERATION OF CASING AND TUBING TONGS, CLASS 1. DIV. 1 (EXPLOSION PROOF), LESS INTERCONNECT HOSES AND FLUID SPECIFICATIONS: (1) STARTER BOX FOR ELECTRIC MOTOR, START AND STOP BUTTONS, SERVICE DISCONNECT, MOTOR RESET BUTTON, POWER ON LAMP, RUNNING LAMP, LESS POWER PIGTAIL (1) REMOTE START/STOP ENCLOSURE, START AND STOP BUTTONS, RUNNING LAMP, WITH 100' CABLE WIRED TO STARTER BOX (1) EXPLOSION PROOF ELECTRIC MOTOR, 60/50 HP, 460/380 VAC, 3 PHASE, 60/50 HZ, 1800/1500 RPM, WITH 120 VAC SPACE HEATER (1) GEAR PUMP FOR TONG OPEN CENTER CIRCUIT, HIGH/LOW VALVES TO DELIVER: 60 GPM UP TO 1300 PSI, THEN 24 GPM UP TO 3000 PSI (@60 Hz) 50 GPM UP TO 1300 PSI, THEN 20 GPM UP TO 3000 PSI (@50 Hz) (1) SYSTEM RELIEF VALVE SET AT 3300 PSI (1) FAN TYPE AIR OVER OIL HEAT EXCHANGER WITH EXPLOSION PROOF ELECTRIC MOTOR (1) 100 GALLON HYDRAULIC RESERVOIR WITH BAFFLE, LEVEL GAUGE, OIL TEMPERATURE GAUGE, CLEANOUT COVER, SUCTION STRAINER WITH ISOLATION BALL VALVE, RETURN FILTER, RETURN PRESSURE GAUGE, DRAIN PORT WITH BALL VALVES, FILLER BREATHER, LEVEL SWITCH, TEMPERATURE SWITCH TO CONTROL HEAT EXCHANGER MOTOR (1) PANEL WITH 0 TO 5000 PSI PRESSURE GAUGES, CONTROL VALVE FOR CASING TONG MODE/DRILL PIPE TONG OR TUBING TONG MODE (1) OILFIELD TYPE BASE SKID WITH DRIP PAN, DRAIN PORTS, FORK LIFT POCKETS (1) LIFT CAGE WITH HOSE BASKET INDUSTRIAL PRIMER AND PAINT ONE COLOR ESTIMATED WEIGHT: 3500 LBS (DRY- NO OIL IN TANK)
