Location:
Navasota, TX
Manufacturer:
King lathes
Model:

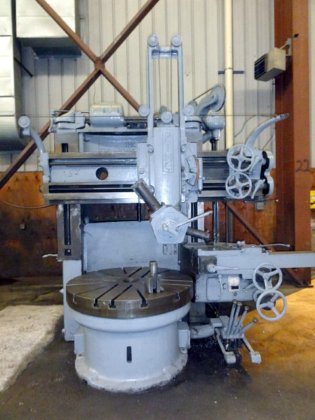

King 52

Specifications

Condition:
used
Stock number:
B600668
Feeds:
.003 To 500 IPR
Side head:
Yes
Main motor:
25 Hp. 440 Volts
Table speed:
3 To 96 Rpm's
Turret head:
Yes
Condition info:
Fair
Machine height:
11'2"
Machine weight:
32,500 Lbs
Face plate size:
52"
Boring mill jaws:
4 (Not Pictured)
Cross rail travel:
25"
Height under rail:
44"
Turret head swivel:
30 Degrees
Machine floor space:
118"X118"
Turret head position:
5
Power elevation of rail:
Yes
Side head travel in & out:
24"
Side head travel up & down:
37"
Rapid traverse to both head:
Yes
Swing side head above table:
47.5"
Turret head travel left to right:
30-3/8"
Max. distance table to turret face:
48-1/4"
Built in 4 way tool post on side head:
Yes
Turret ram head turret travel up & down:
37"
Subcategory:
Boring mills
Subcategory 2:
Vertical turret lathe

Description

Specification Description
Face Plate Size 52"
Boring Mill Jaws 4 (Not Pictured)
Swing Side Head Above Table 47.5"
Height Under Rail 44"
Cross Rail Travel 25"
Table Speed 3 To 96 Rpm's
Feeds .003 To 500 IPR
Main Motor 25 Hp. 440 Volts
Turret Head Travel Left To Right 30-3/8"
Turret Head Swivel 30 Degrees
Turret Ram Head Turret Travel Up & Down 37"
Max. Distance Table To Turret Face 48-1/4"
Turret Head Position 5
Side Head Travel In & Out 24"
Side Head Travel Up & Down 37"
Machine Weight 32,500 Lbs
Machine Floor Space 118"X118"
Machine Height 11'2"
Power Elevation Of Rail Yes
Rapid Traverse To Both Head Yes
Built In 4 Way Tool Post On Side Head Yes
Side Head Yes
Turret Head Yes
Note: Machine Will Be Cleaned, Painted & Cycled
Condition Very Good
