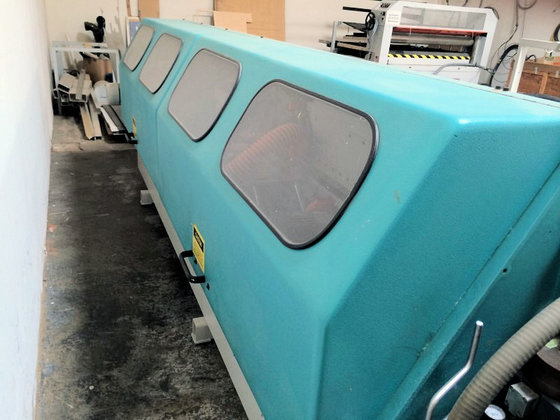

1996 HOLZ-HER TRIATHLON 300 EDGEBANDER
Location:
United States
Price:
$13,050 USD
Manufacturer:
Holz-Her
Model:
TRIATHLON 300

Specifications

Condition:
used
Year:
1996
Recnum:
EU-013741
Comments:
This HOLZ-HER "TRIATHLON 360" is particularely well suited if you need besides basic edgebanding solid wood edge processing!
Machtype:
EDGEBANDER (PLC CONTROLLED)
Condition info:
(3-6) Good Condition [4]
Current status:
Active
Elect./voltage:
230 V, 60 Cy, 3 Ph.
Appr. repl. cost:
75000

Description

HOLZ-HER "Triathlon 360" Edgebander w/Shaper for Solid Wood Edgebanding:Max. 25 mm solid wood banding & 3 mm PVC cap., 2-3/8" max. panel thickness and 7" min. panel length.Front End Equipped with:

-- CARTRIDGE GLUING SYSTEM: "1906" for fast warm-up time within 3 - 5 minutes, glue cartridges are gravity hopper fed.

-- EDGE MAGAZINE: "1901" for fully automatic feeding of coil material (0.3 - 3 mm thickness with HD guillotine) and strips up to 25 mm.

-- PRESSURE SECTION: "1926K" with 1 large dia. roller & 2 medium dia. rollers w/pneumatic PLC controlled pressure application. Powered 1st. roller synchronized with chain feed speed.Workstations:

-- END TRIMMING: "1916.1" Double motor end trimming unit, 0.75 KW (1-HP), 3,340 RPM angle gear driven with "Uni-Point" swivel system for quick change from flush to 10ø bevel programmable from operator panel.

-- ROUGH/FLUSH TRIMMING: "1962" Top & bottom with 2 - 1.86 KW (2.5 HP), 12,000 RPM motors.

-- FINE/BEVEL/RADIUS TRIMMING: "1966" Top & bottom with 1.0 KW (1.34 HP) motors each, 12,000 RPM, tilts 0° - 45°. with digital adjustment redaouts.

-- EDGE SHAPER (1931) for vertical / horizontal shaping or grooving, 3.8 KW (5 HP) spindle motor, 12,000 RPM spindle speed, max. cutter dia. 135 mm (5.3"), max. cutter width 60 mm (2.36"), motor positioning for shaper with SIKO digital readouts

-- OPEN SPACE: (1) For potential additional workstation ie. Glue Screper or Profile Scraper.

-- BUFFING STATION: "1944" Top & bottom programmable "JUMP" action with cotton buffing wheels. 2 - motor 0.25 kW (0.34 HP), 3,600 RPM, tilt 0° - 45°.Complete with & Features:

-- Operator’s panel, with soft keys and LED display, ~ programmable, motorized height adjustment of top pressure beam. ~ Outboard panel support and sound enclosure w/interior lights over all milling units.

-- Variable feed speed from 8 - 20 MPM (26 - 67 FPM). Panel overhang beyond conveyor chain is 35 mm (1.38").

-- NOTE: Actual Model is Triathlon 360.
