Location:
Bensenville, IL
Manufacturer:
Processall
Model:
20 HV

Specifications

Condition:
used
Stock number:
46591001
Cubft:
0.49
Dia (in):
PROCESSALL
Len (in):
16
Material:
304SS

Description

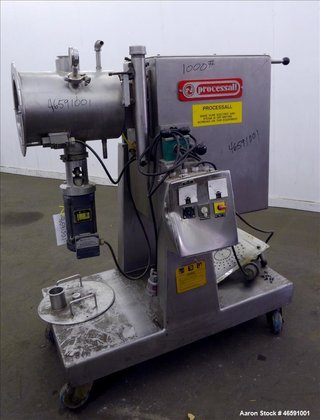

46591001 Used- Processall Tilt-A-Mix Lab Size Rotary Vacuum Dryer, Model 20 HV, 304 Stainless Steel. 14 Liter working capacity, 20 total. 304 Stainless steel jacketed chamber approximate 10" diameter x 16" deep. Approximate 1-1/2" diameter shaft with (2) welded plow blades, and (2) welded end scrappers, (1) high speed side chopper, manual tilt. Plow blades driven by 3 hp, 3/60/230/460 volt, 1725 rpm motor. Chopper driven by a 1 hp, 3/60/208-230/460 volt, 3450 rpm motor. Removable cover (missing clamp), with 3" tri-clamp. Side openings (1) 3" tri-clamp, (2) 1-1/2" tri-clamp. Mounted on stainless steel base with casters. Serial# 48.
