Agilent HP E4440A in United
Location:
United States
Price:
$14,990 USD

Specifications

Condition:
used
Division:
Test and Measurement
Amplitude range:
DANL to maximum safe input level
Low end frequency limit:
3.00 Hz
High end frequency limit:
26.50 GHz
Resolution bandwidth max:
8.00 MHz
Resolution bandwidth min:
1 Hz
Subcategory:
Agilent
Subcategory 2:
Analyzers spectrum

Description

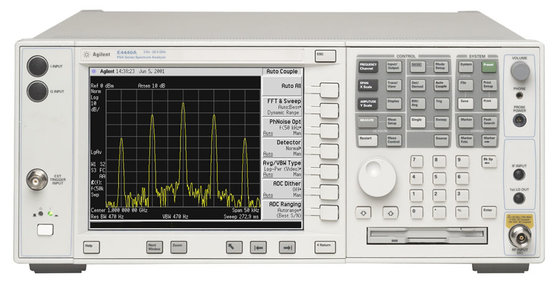

Agilent E4440A Spectrum Analyzer at BRL Test
Agilent E4440A Spectrum Analyzer at BRL Test. We absolutely know Agilent Spectrum Analyzer sales and repairs. Call your BRL Test representative today to see if the E4440A is the right Analyzer for you. 866-275-8378.
The Agilent E4440A PSA high-performance spectrum analyzer measures and monitors complex RF and microwave signals up to 26.5 GHz. With optional external mixing, the frequency coverage expands to 325 GHz.
Typical performance @ 1GHz: Dynamic range (-155 dBm DANL, +19 dBm TOI, -118 dBc/Hz phase noise at 10 kHz offset; Accuracy (±0.19 dB absolute amplitude accuracy, ±0.11 dB frequency response
40 or 80 MHz analysis bandwidth to capture and measure complex signals.
Flexible platform with 16 optional, easy-to-use built-in measurement personalities
Save on premium quality used E4440A's. Freshly calibrated, certified and guaranteed to work accurately right out of the box - no worries. Purchase easy knowing that your full warranty is backed up by our in house repair engineering department . Our military trained techs repair E4440's at our world class lab.
The Agilent
E4440A
PSA high-performance spectrum analyzer measures and monitors complex RF and microwave signals up to 26.5 GHz. With optional external mixing, the frequency coverage expands to 325 GHz.
Typical performance @ 1GHz: Dynamic range (-155 dBm DANL, +19 dBm TOI, -118 dBc/Hz phase noise at 10 kHz offset; Accuracy (±0.19 dB absolute amplitude accuracy, ±0.11 dB frequency response
40 or 80 MHz analysis bandwidth to capture and measure complex signals.
Flexible platform with 16 optional, easy-to-use built-in measurement personalities
