Keysight / Agilent / HP
Location:
United States
Price:
$9,195 USD

Specifications

Condition:
used
Division:
Test and Measurement
Max. freq:
3.00 GHz
Min. freq:
10.00 MHz
Gain measurement range:
-20 to + 40 dB
Noise figure measurement range:
0 to 35 dB
Subcategory:
Meters
Subcategory 2:
Noise figure

Description

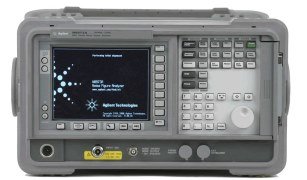

Keysight / Agilent / HP N8973A Noise Figure Analyzer 10 MHz to 3 GHz
In stock
The Agilent
N8973A
is a high performance noise figure analyzer designed to make fast, accurate and repeatable noise figure measurement.
With the N8973A ease of use features, you can set up complex measurements simply and easily giving you repeatable and reliable results you can trust.
The N8973A offers simultaneous noise figure and gain measurements with the ability to view, print and save the data/display in multiple formats.
The N8973A also has the ability to characterize amplifiers and frequency translating devices, including LO control over dedicated 2nd GPIB.
The N8973A offers increased measurement accuracy and faster measurement speed over previous Agilent noise figure meters, as well as six user selectable measurement bandwidths.
Frequency range 10 MHz to 3.0 GHz
N-type (m) connector
SNS series noise source compatibility
1 year standard warranty
