Agilent HP 8564E in United
Location:
United States
Price:
$20,000 USD

Specifications

Condition:
used
Status:
Discontinued
Division:
Test and Measurement
Alternative:
8564EC Portable Spectrum Analyzer, 9 kHz to 40 GHz
Amplitude range:
Displayed average noise level to +30 dBm
Supported until:
Apr-2006
Discontinuance date:
Apr-2001
Low end frequency limit:
30.00 Hz
High end frequency limit:
40.00 GHz
Resolution bandwidth max:
100.00 Hz
Resolution bandwidth min:
1 Hz
Subcategory:
Portable
Subcategory 2:
Analyzers spectrum

Description

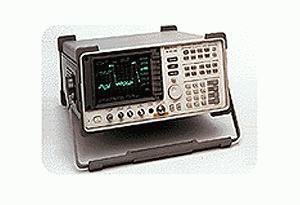

Agilent/HP 8564E 9kHZ-40GHz Portable Spectrum Analyzer
Quantity:
The Agilent
8564E
portable millimeter spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. You can measure signals from 30 Hz to 40 GHz (preselected above 2.75 GHz) with a single coaxial connection.
The 8564E combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.
Continuous 30 Hz to 40 GHz sweep
Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
Precision timebase and 1 Hz counter resolution
MIL-T-28800 rugged
Measurement personalities for digital radio and phase noise measurements
