Agilent HP 8563E in United
Location:
United States
Price:
$8,995 USD

Specifications

Condition:
used
Status:
Discontinued
Division:
Test and Measurement
Alternative:
8563EC Portable Spectrum Analyzer, 9 kHz to 26.5 GHz
Amplitude range:
Displayed average noise level to +30 dBm
Supported until:
Mar-2006
Low end frequency limit:
30.00 Hz
High end frequency limit:
26.50 GHz
Resolution bandwidth max:
100.00 Hz
Resolution bandwidth min:
1 Hz
Subcategory:
Portable
Subcategory 2:
Analyzers spectrum

Description

Agilent 8563EC 9kHz - 26.5GHz Spectrum Analyzer **IN STOCK**
The Agilent 8563EC 9 kHz to 26.5 GHz Portable RF Spectrum Analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers.
This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions.
It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.
Time-gated signal analysis allows you to easily measure time-varying signals such as pulsed RF, time-division multiple access, interleaved, and burst-modulated.

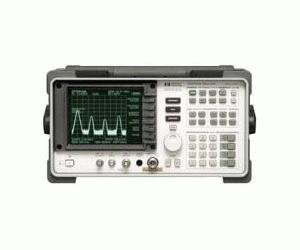

The Agilent
8563E
portable microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 9 kHz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.
The 8563E combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions.
Continuous 30 Hz to 26.5 GHz sweep
Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
Precision timebase and 1 Hz counter resolution
MIL-T-28800 rugged
Measurement personalities for digital radio and phase noise measurements
