Agilent HP 8757D in United
Location:
United States
Price:
$6,995 USD

Specifications

Condition:
used
Status:
Discontinued
Division:
Test and Measurement
Alternative:
Family of Vector Network Analyzers
Instrument type:
Scalar
Output power range:
+16 to -60 dBm dynamic range
Discontinuance date:
Dec-2010
Low end frequency limit:
10.00 MHz
High end frequency limit:
110.00 GHz
Subcategory:
Scalar
Subcategory 2:
Analyzers network

Description

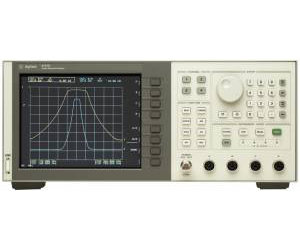

Agilent HP 8757D/001
The Agilent 8757D scalar network analyzer allows you to measure insertion loss, gain, return loss, SWR, and power quickly and accurately . With high-performance detectors and directional bridges, and a companion Agilent source and printer, this analyzer becomes the basis of a complete measurement system with superb performance. Setup time is reduced by external disk save/recall, and measurement data can be sent directly to a printer while you proceed to the next measurement. You can configure your system using an Agilent PSG signal generator with ramp sweep capability. The dynamic range can be extended from 75 dB to 83 dB using the PSG s high power option. Up to 83 dB dynamic range Buffered plotter/printer output Built-in limit testing for quick pass/fail decisions External disc and internal register save/recall of test setups Color display
The
8757D
scalar network analyzer allows you to measure insertion loss, gain, return loss, SWR, and power quickly and accurately. With high-performance detectors and directional bridges, and a companion Agilent source and printer, the HP Agilent 8757D Network analyzer becomes the basis of a complete measurement system with superb performance. Setup time is reduced by external disk save/recall, and measurement data can be sent directly to a printer while you proceed to the next measurement. You can configure your HP Agilent 8757D to 50 GHz in coax or to 110 GHz in waveguide using an Agilent PSG signal generator with ramp sweep capability.
Four display channels
Three detector inputs
An optional fourth detector input
An optional internal power calibrator
Accurate power measurements with Agilent 85037 series precision detectors
High resolution color display
Internal plotter/printer buffer
+16 to –60 dBm dynamic range
AC/DC detection modes
101 to 1601 measurement points/trace
Noise figure measurement display capability
Limit line testing (channels 1 and 2)
Adaptive normalization
Cursor search functions (max, min, n dB, BW)
