Agilent HP 4194A in United

Agilent HP 4194A in United States

Location:
United States
Price:
$5,995 USD
Manufacturer:
Agilent

Specifications

Condition:
used
Status:
Discontinued
Division:
Test and Measurement
Alternative:
4294A, 4395A
Cable length:
1.5 m
Frequency range:
10 kHz - 100 MHz, 1 mHz resolution
Supported until:
Jun-2005
Discontinuance date:
Jul-2000
Measurement parameters:
|Z|, |Y|, Theta, R, X, G, B, L, C, D, Q (1/D)
Gain-phase measurements:
10 Hz to 100 MHz, -107 dBm to +15 dBm, 0.1 dB resolution
Category:
Analyzers
Subcategory:
Impedance

Description

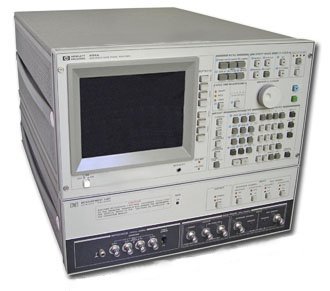

Agilent HP 4194A/16047A - Impedance / Gain Phase Analyzer
Keysight Agilent HP 4194A - Impedance / Gain Phase Analyzer. Option 350 (50 Ohm) 100 Hz to 40 MHz. Includes HP 16047A
The
4194A
impedance/gain-phase analyzer is an integrated solution for efficient measurement and analysis or go/no-go testing of components and circuits. Detailed impedance and transmission characteristics, including secondary parameter derivations, can be simply and quickly evaluated or tested. The 4194A can contribute to improving engineering productivity and reducing test cost. The analyzer is flexible and has wide measurement capabilities in both impedance and transmission measurements. It is also fully programmable using Auto Sequence Programming (ASP). Desired measurements and computations, including graphics analysis, can be programmed simply by storing front-panel keystroke operations, allowing you to customize measurements, computation, and analysis functions. The 4194A also features high-accuracy and error elimination functions to ensure reliable measurements.
Frequency range: 10 kHz - 100 MHz, 1 mHz resolution
Wide range impedance measurement: 100 Hz to 40 MHz, 10 mΩ to 100 MΩ ,10 kHz to 100 MHz, 0.1 Ω to 1 MΩ, when used with the 41941A/B
Gain-phase measurements: 10 Hz to 100 MHz, -107 dBm to +15 dBm, 0.1 dB resolution
Measurement parameters: |Z|, |Y|, Theta, R, X, G, B, L, C, D, Q (1/D)
Flexible measurement, computation, and analysis capabilities on a color graphic display
Fully programmable
Cable length: 1.5 m
