Agilent HP N9340B in United
Location:
United States
Price:
$5,998 USD
Model:
N9340B

Specifications

Condition:
used
Division:
Test and Measurement
Amplitude range:
DANL to +20 dBm
Low end frequency limit:
100.00 kHz
High end frequency limit:
3.00 GHz
Resolution bandwidth max:
1.00 MHz
Resolution bandwidth min:
30 Hz
One-button power measurement:
Channel power, ACPR, and OBW
Multi-language user interface:
11 languages
Subcategory:
Portable
Subcategory 2:
Analyzers spectrum

Description

Agilent Keysight N9340B/PA3/TG3***IN STOCK with Keysight Warranty***
Includes Keysight Factory Warranty until Dec. 2017

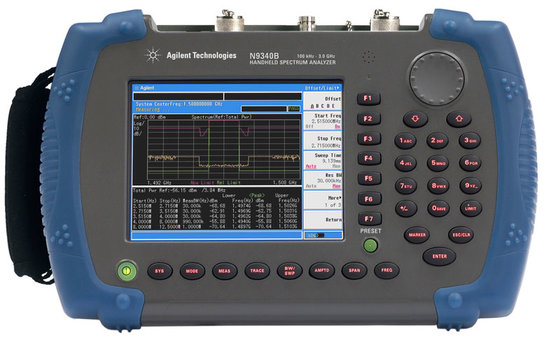

Agilent HP N9340B Handheld Spectrum Analyzer (HSA), 100 kHz to 3 GHz ((tunable to 9 kHz with XDM option at additional cost)The N9340B handheld RF spectrum analyzer provides powerful features for field applications, superior performance to build the confidence in field test, and exceptional usability to enhance field productivity.Usability 6.5’’ TFT color LCD for indoor and outdoor use 4-hour battery operating time Remote control via SCPI on USB and LAN* port Multi-language user interface: 11 languages One-button power measurement: Channel power, ACPR, and OBWStandard Features Spectrogram Spectrum emission mask Agilent USB power sensor support Field strength measurement. Optional features: PA3 - 3 GHz pre-amplifier, TG3- 3 GHz tracking generator Automotive 12 DC adaptor
The
N9340B
handheld RF spectrum analyzer provides powerful features for field applications, superior performance to build the confidence in field test, and exceptional usability to enhance field productivity.
100 kHz to 3 GHz frequency range
10 ms non-zero span sweep time
30 Hz to 1 MHz RBW in 1-3-10 sequence
–144 dBm displayed average noise level (DANL) with pre-amplifier
+10 dBm third order intercept (TOI)
6.5’’ TFT color LCD for indoor and outdoor use
4-hour battery operating time
Remote control via SCPI on USB and LAN port
Multi-language user interface: 11 languages
One-button power measurement: Channel power, ACPR, and OBW
Back-lit keys for night use
Built-in light sensor
Channel table
Spectrogram
Spectrum emission mask
Agilent USB power sensor support
Field strength measurement
AM/FM and ASK/FSK modulation analysis option
3 GHz pre-amplifier option
3 GHz tracking generator option
Hard transit case option
Automotive 12 DC adaptor option
