Agilent HP 8720ES in United
Location:
United States
Price:
$22,995 USD

Specifications

Condition:
used
Status:
Discontinued
Division:
Test and Measurement
Alternative:
N5230A PNA-L Network Analyzer (Option 140/145/146), (Option 220/225), (Option 240/245/246)
Instrument type:
Vector
Supported until:
May-2010
Input noise level:
-120 dBm
Output power range:
100 dB 9at 0.84 to 20 GHz)
Discontinuance date:
May-2005
Low end frequency limit:
50.00 MHz
High end frequency limit:
20.00 GHz
Subcategory:
Vector
Subcategory 2:
Analyzers network

Description

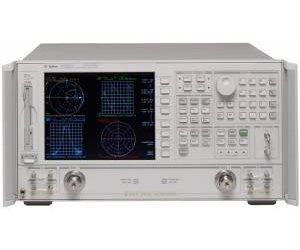

Agilent HP 8720ES Vector Network Analyzer 50MHz-20GHz
Agilent-HP 8720ES The HP Agilent 8720ES, Network Analyzer, includes an integrated synthesized source, test set and tuned receiver.
The built-in S-parameter test set provides a full range of magnitude and phase measurements in both the forward and reverse directions.
Built-in vector accuracy enhancement techniques include full two-port, adapter-removal, and optional TRL calibration.
The Agilent
8720ES
vector network analyzer allows complete characterization of RF and microwave components. The 8720ES includes an integrated synthesized source, test set and tuned receiver. The built-in S-parameter test set provides a full range of magnitude and phase measurements in both the forward and reverse directions. Built-in vector accuracy enhancement techniques include full two-port, adapter-removal, and optional TRL calibration.
50 MHz to 20 GHz 100 dB of dynamic range
Excellent measurement accuracy
Two measurement channels
Four display channels
Frequency and power sweeps
Fast sweep and data transfer speed
Pass/Fail testing, powerful marker functions
Electronic calibration (ECal)
Internal automation with test-sequencing
Optional time-domain, high power test set, four samplers and TRL calibration, direct sampler access, frequency-offset mode
