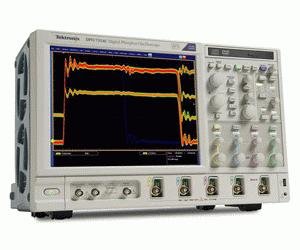

Tektronix DPO7354C in United States
Location:
United States
Price:
$38,475 USD

Specifications

Condition:
used
Sample:
Acquire sampled values
Cursors:
Waveform and Screen
Channels:
4
Division:
Test and Measurement
Envelope:
From 1 to 2×10
Averaging:
From 2 to 10,000 waveforms included in average
Bandwidth:
3.5 GHz
Rise time:
115 ps
Arithmetic:
Add, Subtract, Multiply, Divide waveforms and scalars
Relational:
Boolean result of comparison >, <, ≥, ≤, = =, !=
Combination:
Area, Cycle Area, Phase, Burst Width
Launch date:
Apr-2011
Sample rate:
40.00 GSa/sec
Memory depth:
50 M standard, up to 500 M with options
Input channels:
4
Imput impedance:
1 MΩ ±1% with 13 pF ±2 pF, 50 Ω ±1%
Time base range:
25 ps/div to 1000 s/div
Main trigger modes:
Auto, Normal, and Single
Vertical resolution:
8 bit (>11 bit, with high res)
Waveform definition:
As an arbitrary math expression
Trigger level (line):
Fixed at 0 V
Maximum record length:
50 M (1 ch) with standard configuration; Up to 500 M with options
Trigger delay by time:
5 ns to 250 s
Trigger holdoff range:
250 ns to 12 s
Automatic measurements:
53, of which 8 can be displayed on-screen at any one time
Measurement statistics:
Mean, Minimum, Maximum, Standard Deviation
Optional trigger modes:
Comm, I
Trigger delay by events:
1 to 10,000,000 events
Number of math waveforms:
Up to 4
Maximum input voltage, 50:
5 VRMS, with peaks ≤ ±24 V
Maximum input voltage, 1 m:
±150 V CAT I, derate at 20 dB/decade to 9 Vrms above 200 kHz
Maximum sample rate (1 ch):
40 GS/s standard
Time base delay time range:
5 ns to 250 s
Clock recovery frequency range:
1.5 MBaud to 1.25 GBaud
Trigger level range (internal):
±12 divisions from center of screen
Channel-to-channel deskew range:
±75 ns
Frequency domain functions (fft):
Spectral Magnitude and Phase, Real and Imaginary Spectra
Subcategory:
Digital
Subcategory 2:
Oscilloscopes

Description

Tektronix DPO7354C Opts:
EXTRA DISCOUNT AVAILABLE. 3.5 GHz 4ch. Oscilloscope, Includes 25M basic memory with optional upgrades available to 250M. 250,000 wfms/second FastAcq update mode, and a variety of advanced capabilities and optional features make the DPO7000 series the favorite it the mid-range lab scopes. Includes 4 probes, OPTION FLEX: Internal options may be added at the same discount rate as the main unit! 1 year Tektronix warranty, NIST CAL CERT. CONTACT US ABOUT SPECIAL DISCOUNTS FOR EDUCATION, VOLUME, INDUSTRIAL, GOVERNMENT PURCHASES. Authorized distributor. "Doing Business with us is easy." Call 800-444-6106 today! U.S. Sales only
Option:
Condition:
DEMO
With the DPO7000C Digital Phosphor Oscilloscope Series, you can analyze analog and serial bus signals with a single instrument to quickly find and diagnose problems in complex designs. Bandwidths up to 3.5 GHz and sample rates up to 40 GS/s ensure you have the performance you need to see fast-changing signal details. To capture long windows of signal activity while maintaining fine timing resolution, the DPO7000C Series offers a deep record length of up to 12.5M points standard on all channels and an optional record length of up to 500M points on two channels.
With Advanced Search and Mark and MultiView Zoom™ features for rapid waveform navigation, and more than 15 optional software and analysis packages for common technologies and in-depth analysis tasks, the DPO7000C Series from Tektronix provides the feature-rich tools you need to simplify and speed debug of your complex design.
3.5 GHz, 2.5 GHz, 1 GHz, and 500 MHz Bandwidth Models
Up to 40 GS/s Real-time Sample Rate on One or Two Channels and up to 10 GS/s on All Four Channels
Up to 500 Megapoint Record Length with MultiView Zoom™
>250,000 wfms/s Maximum Waveform Capture Rate with FastAcq™
FastFrame™ Segmented Memory Acquisition Mode with >310,000 Waveforms per Second Capture Rate
User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
Pinpoint® Triggering provides the Most Flexible and Highest Performance Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation
Advanced Search and Mark to Find Specific Events in the Entire Waveform
MyScope® Custom Control Windows and Right Mouse Click Menus for Exceptional Efficiency
53 Automated Measurements, Waveform Histograms, and FFT Analysis for Simplified Waveform Analysis
TekVPI® Probe Interface supports Active, Differential, and Current Probes for Automatic Scaling and Units
12.1 inches (307 mm) Bright XGA Display with Touch Screen
USB Host Ports on the Front and Side Panels for Quick and Easy Data Storage, Printing, and Connecting USB Peripherals
Integrated 10/100/1000BASE-T Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector
Microsoft® Windows 7 64-bit Operating System for Easy Connectivity and Integration into Your Environment
LXI Class C Compliant
Optional Ser
