- Test and Measurement
- Used unit:
- MAKE ME AN OFFER.. I HAVE 2 UNITS AVAILABLE..
- N5230A PNA-L Network Analyzer (Option 420/425)
- Instrument type:
- Vector, S-Parameter
- Supported until:
- Input noise level:
- -120 dBm
- Output power range:
- 80 dB at 20 to 40 GHz
- Discontinuance date:
- Low end frequency limit:
- 50.00 MHz
- High end frequency limit:
- 40.00 GHz
- Test and Laboratory equipment in United States
- Subcategory 2:
- Analyzers network
USED UNIT: MAKE ME AN OFFER.. I HAVE 2 UNITS AVAILABLE..

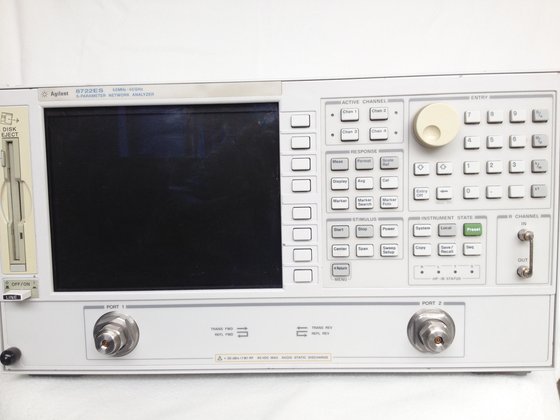

Agilent 8722ES 40GHz Network Analyzer Calibrated Options 1D5
Options-1D5-High Stability Frequency Reference
There are no additional accessories
only power cords included with this unit other than what is stated above or shown in the pictures.
30 DAY WARRANTY / 7 DAY ROR
The unit has been op checked & is fully functional.
International buyers must provide their own shipping account to ship unit on.
Ms. Brandy Hoskins
vector network analyzer allows complete characterization of RF and microwave components. The Agilent 8722ES includes an integrated synthesized source, test set and tuned receiver. The built-in S-parameter test set provides a full range of magnitude and phase measurements in both the forward and reverse directions. Built-in vector accuracy enhancement techniques include full two-port, adapter-removal, and optional TRL calibration.
50 MHz to 40 GHz 100 dB of dynamic range
Excellent measurement accuracy
Two measurement channels
Four display channels
Frequency and power sweeps
Fast sweep and data transfer speed
Pass/Fail testing, powerful marker functions Electronic calibration (ECal)
Internal automation with test-sequencing
Optional time-domain, high power test set, four samplers and TRL calibration, direct sampler access, frequency-offset mode
