Location:
Naples, FL
Price:
$91,500 USD

Specifications

Condition:
used
Year:
2006
Stock number:
17417
Width:
87"
Height:
96"
Length:
337"
Thrust:
36,000 lbs
Weight:
27,700 lbs
Max flow:
120 gal/min
Pullback:
40,000 lbs
Fuel type:
Diesel
Entry angle:
10-16°
Displacement:
409 cubic inches
Max pressure:
1300 psi
Pipe diameter:
2.81"
Joint diameter:
3.5"
Make and model:
Cummins QSB6.7
Min bend radius:
190'
Rated engine rpm:
2400 rpm
Max spindle speed:
240 rpm
Min bore diameter:
5"
Fuel tank capacity:
55 gal
Ground drive speed:
2.5 mph
Max carriage speed:
120 ft/min
Max spindle torque:
5000 ft /lbs
Number of cylinders:
6
Emissions compliance:
EPA Tier 3
Engine cooling system:
Liquid
Hydraulic tank capacity:
36 gal
Weight of pipe and large box:
6000 lbs (32 pipe)
Weight of pipe and small box:
3100 lbs (16 pipe)
Manufacturer's gross hp rating:
190 hp
Subcategory:
Hdd drills

Description

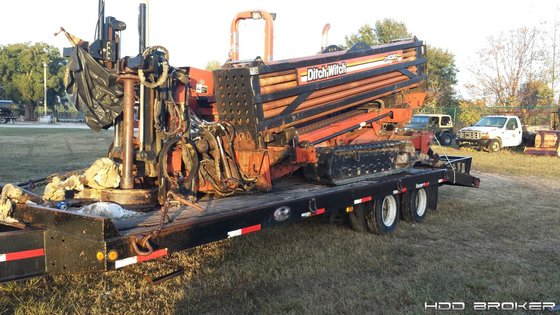

General Description: 2006 Ditch Witch JT4020 Mach 1 Directional Drill: -3,120 hours
Pipe: -500 Feet of Drill Rods (seller states condition is rated at 95%) -360 Feet of Drill Rods (seller states condition is rated at 60%)
Additional Information: NOT INCLUDED - The following items are available at an additional cost: -2001 Freightliner Truck (140,573 Miles) -Subsite Tracker 752T / Subsite Display 752D / Subsite Beacon 86BH -Ditch Witch FM13 Twin Tank Mud Mixing System -2006 Anderson Equipment Trailer Please contact HDD Broker for details and pricing.
