1983 OERLIKON M 10 V
Location:
Staufenberg, Germany
Model:
M 10 V

Specifications

Condition:
used
Year:
1983
Stock number:
100340
Subcategory:
Milling

Description

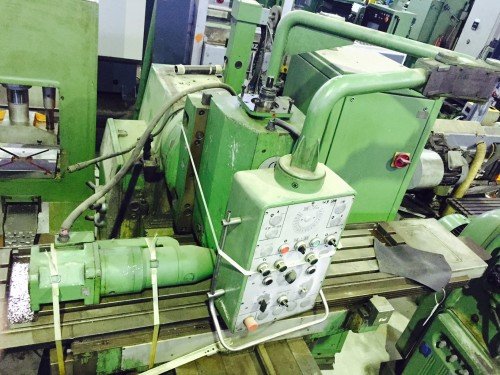

Vertical milling machine Fabr. OERLIKON Type M 10 V
Fabr. Reference: 083 651 Year 1983
Technical specifications:
Table area: 1800 x 400 mm
Tischlängsweg X: 1100 mm
Tischquerweg Y: 400 mm
Tischsenkrechtweg Z: 500 mm
Spindle taper: ISA 50
18 Turning speed: 22.4 to 1800 rpm.
48 longitudinal and Quervorschübe: 10 - 2000 mm / min
48 Senkrechtvorschübe: 5 - 1000 mm / min
2 Rapid feed longitudinal and transverse: 400 4000 mm / min
2 rapid traverse vertical: 200 2000 mm / min
Creep lengthwise and crosswise: 2 mm / min
Creep speed vertical: 0.8 mm / min
automat. Spindle adjustment of Vert. milling head: 250 mm
Engine power: 15 kW
Feed motor: 2.2 kW
Dimensions L x W x H: 2500 x 2260 x 2750 mm
Weight approx .: 4600 kg
With
- Vertical milling head with TVA carriage stroke 250 mm and
automatic tool clamping
- 3-axis digital readout HEIDENHAIN
- Cooling device
- Several toolholders
Used, in good condition
Price on request.
Delivery: from stock or store freely loaded truck.
Payment: at acquisition, net or by ...
