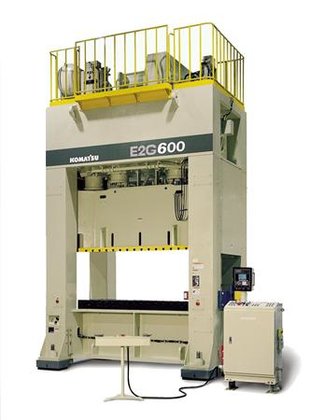

KOMATSU E2G-600C STRAIGHT SIDE DOUBLE
Location:
United States
Price:
No price
Manufacturer:
Komatsu presses
Model:
E2G-600C STRAIGHT SIDE DOUBLE CRANK PRESS
Stroke:
15.7"

Specifications

Condition:
used
Stock number:
33612
Motor:
75HP
Speed:
20 - 40 SPM
Stroke:
15.7"
Tonnage:
660 Ton
Adjustment:
13.7"
Bolster area:
168" (R-L) x 61" (F-B)
Bolster thickness:
8.7"
Shut height over bed, sdau:
44.9"
Shut height over bolster, sdau:
36.2"
Frame window openings in uprights:
63" (F-B) x 36" (T-B)
Subcategory:
Mechanical presses

Description

Equipped With
SIT-IV Solid State Control
Motorized Slide Adjustment with Hydraulic Lock
Hydraulic Clutch & Brake
Automatic Flywheel Brake
Plunger Guided Slide for True Vertical Slide Motion
Hardened and Ground Helical Gears in Oil Bath
Hydraulic Overload
Micro Inch for Die Set-Up
Hydraulic Tie Rod Nuts
Plug-In "T" Stand
Plug-In T Stand
Dimensions and Weight
0"x 0"x 0"
0mm x 0mm x 0mm
0
0 Kg
