Location:
Bensenville, IL
Manufacturer:
MAN reactors
Model:
300 L

Specifications

Condition:
used
Serial number:
94PH49004
Stock number:
46691003
Bottom:
Dished Bottom
Gallons:
79.25
Mounted:
Mounted on 3 Legs
Opening:
Top: 20" Man way with hinged cover, (1) 4", (2) 3" sight glasses, (2) 2"
Diameter:
28"
Jacket psi:
119
Year built:
1993
Outlet size:
2"
Interior psi:
42
Straight side:
30"
Top head style:
Dished Head
Outlet location:
Bottom
Internal pressure:
42/-15
Overal dimensions:
42"L x 42"W x 90"T
Pressure - jacket:
119/-15
National board no.:
2562
Internal temperature:
-20 to 350 degrees F
Temperature - jacket:
-20 to 350 degrees
Horizontal or vertical:
Vertical
Material of construction:
316 Stainless Steel

Description

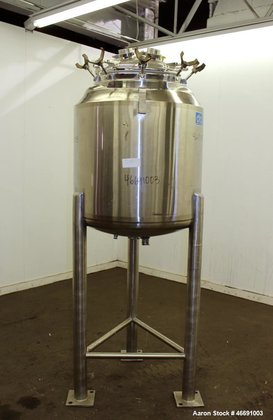

46691003 Used- DCI Reactor, 300 Liter (79.25 Gallon), 316L Stainless Steel, Vertical. Approximately 28" diameter x 28-1/2" straight side. Dished top and bottom, Insulated. Internal rated 42/-15 psi at -20 to 350 degrees F. 304 Stainless steel dimple jacket rated 119/-15 psi at -20 to 350 degrees F. Openings top: 20" Man way with hinged cover, (1) 4", (2) 3" sight glasses, (2) 2". 2" Sanitary center bottom outlet. Mounted on (3) stainless steel legs. Serial# 94PH49004, National Board# 2562. Built 1993.
