Tektronix AWG7051 in United States
Location:
United States
Price:
$32,000 USD
Model:
AWG7051

Specifications

Condition:
used
Channels:
1
Division:
Test and Measurement
Record length:
2 to 64, 800, 000 points (with Option 01) in multiples of 64
Sampling rate:
5.00 GSa/sec
Vertical resolution:
10 bits
Output voltage range:
Normal: 50 mVpk-pk to 2.0 Vpk-pk
Subcategory:
Arbitrary
Subcategory 2:
Generators

Description

Tektronix TEK AWG7051 /001 INCLUDES A FRESH CALIBRATION PRIOR TO SHIPPING

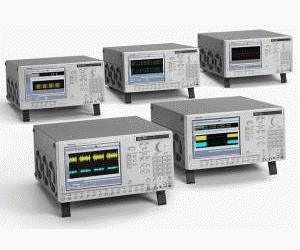

The AWG7000 Series of Arbitrary Waveform Generators Delivers the Industry’s Best Mixed-signal Stimulus Solution for Ever-increasing Measurement Challenges The AWG7000 Series Arbitrary Waveform Generator delivers a unique combination of superior signal stimulus, unrivaled sample rate, bandwidth and signal fidelity, and uncompromised usability.
This family offers the industry’s best solution to the challenging signal stimulus issues faced by designers verifying, characterizing, and debugging sophisticated electronic designs.
With sample rates from 5 GS/s to 20 GS/s (10 bits), together with 1 to 2 output channels, the toughest measurement challenges in the disk drive, communications, digital consumer, and semiconductor design/test industries can be easily solved.
The open Windows (Windows XP)-based instruments deliver ease of use and allow connectivity with peripherals and compatibility with third-party software.
The
AWG7000
Series Arbitrary Waveform Generator delivers a unique combination of superior signal stimulus, unrivaled sample rate, bandwidth and signal fidelity and uncompromised usability.
This family offers best solution in the industry to the challenging signal stimulus issues faced by designers verifying, characterizing, and debugging sophisticated electronic designs.
With sample rates from 5 GS/s to 20 GS/s (10-Bits), together with 1 to 2 output channels, the toughest measurement challenges in the disk drive, communications, digital consumer and semiconductor design/test industries can be easily solved.
The open Windows (Windows XP)-based instruments deliver ease of use and allow connectivity with peripherals and compatibility with third-party software.
10 GS/s (20 GS/s) and 5 GS/s models
1 or 2 Arbitrary Waveform Outputs
Accurate Timing with only 20 psp-p Total Jitter (at 10-12 BER, Typical)
45 ps Tr/Tf (20% to 80%)
±100 ps Range (1 ps Resolution) Inter Channel Skew Control
2 or 4 Variable Level Marker Outputs
Accurate Timing with only 30 psp-p Total Jitter (at 10-12 BER, Typical)
45 ps Tr/Tf (20% to 80%)
Up to 300 ps Range (1 ps Resolution) Delay Control
Vertical Resolution up to 10-Bit Available: 10-Bits (No Marker Output) or 8-Bits (with Two Marker Outputs)
Up to 64 M (64,800,000) Point Record Length Provides Longer Data Streams
Down to 100 fs Resolution Edge Timing Shift Control
Real-time Sequencing Creates Infinite Waveform Loops, Jumps, and Conditional Branches
Intuitive User Interface Shortens Test Time
RFXpress and SerialXpress are powerful easy to use software packages to synthesize RF and high speed serial data signals respectively for arbitrary waveform generators
Integrated PC Supports Network Integration and Provides a Built-in DVD, Removable Hard Drive, LAN, and USB Ports
