Agilent HP 83752A in United
Location:
United States
Price:
$8,200 USD

Specifications

Condition:
used
Status:
Discontinued
Modulation:
AM, FM, Pulse
Alternative:
E8257D-520 Frequency Range from 250 kHz to 20 GHz
Output power:
Minimum settable power: - 15 dBm; Wit h option: - 85 dBm
Supported until:
Mar-2008
Freq. resolution:
1.0 Hz
Frequency range max:
20.00 GHz
Frequency range min:
10.0 MHz
Subcategory:
Sweepers
Subcategory 2:
Test and measurement

Description

Agilent/HP 83752A WITH OPT 1E1/1E5 **IN STOCK**
This Agilent 83752A will receive a New NIST Traceable Calibration before it ships.

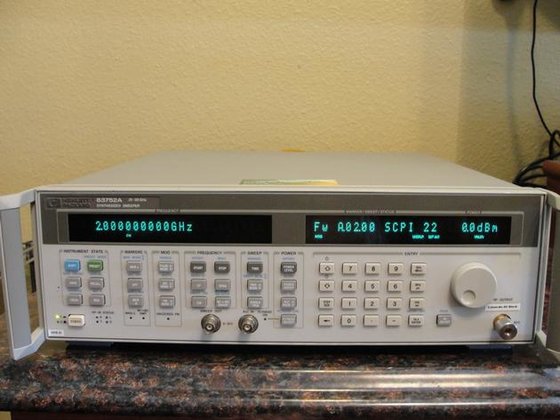

Comes with options 1E1 (Step Attenuator) and 1E5 (High Stability Timebase). This unit is in stock and ready to ship. The unit pictured is the same unit that is being offered. Comes with Manual on CD, Power Cord, and a 30 Day Warranty. We can ship worldwide!
The Agilent
83752A
sweeper brings outstanding synthesized performance to the component-test marketplace. It delivers the best performance for the price in general purpose benchtop, swept test or scalar applications. This sweeper provides superior accuracy and stability while maintaining the speed of an analog source. Fully synthesized CW, stepped and ramp sweep modes are available in broadband and narrowband operation. The synthesis capability is particularly useful for the characterization of narrowband devices, in which the frequency instabilities of open-loop sources become most apparent. Excellent output power flatness and accuracy can be translated to the input port of the device under test with the power flatness correction feature of this source.
Fully phase locked analog sweep for accuracy and speed
Flat and accurate output power to characterize the linear response of the test device
Offset frequency sweep for mixer test
Agilent 8350 programming mode for backwards compatibility
