Tektronix DPO7104 in United States
Location:
United States
Price:
$9,300 USD

Specifications

Condition:
used
Status:
Discontinued
Channels:
4
Division:
Test and Measurement
Bandwidth:
1.0 GHz
Launch date:
Jan-2006
Sample rate:
20.00 GSa/sec
Memory depth:
200 M record length on one channel
Subcategory:
Digital
Subcategory 2:
Oscilloscopes

Description

TEKTRONIX DPO7104 /USB FRESH CALIBRATION IN STOCKf 2/24/15
The DPO7104 is a digital phosphor oscilloscope that provides a solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs. This oscilloscope features exceptional performance in signal acquisition and analysis, operational simplicity and sophisticated debugging tools to accelerate your day to day tasks. The 12.1" touch screen and the intuitive user interface provide easy access to the maximum amount of information. Features: 4 Channels 1 GHz Bandwidth Max Sample Rate (with option 2SR): 10 GS/s (3 to 4 Channels), 20 GS/s (2 Channels), 40 GS/s (1 Channel) >250,000 wfms/s Maximum Waveform Capture Rate MyScope(R) Custom Windows Right Mouse Click Menus for Exceptional Efficiency? Pinpoint(TM) Triggering Provides the Most Flexible and Highest Performance Triggering, with 1400 Other Combinations to Address Virtually Any Triggering Situation? 12.1" XGA Touch Screen Display? Low-speed Serial Protocol Triggering (I2C, SPI, CAN)? OpenChoice(R) Software with Microsoft Windows XP OS? Small Footprint (17.75" W x 11.48" H x 10.44" D) and Light Weight (32 lbs)? IVI instrument drivers are included to enable easy communication with the oscilloscope using GPIB, serial data, and LAN connections from programs running on the instrument or an external PC.

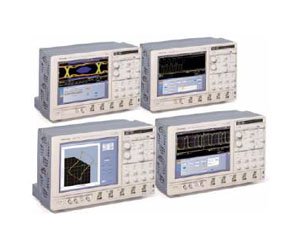

The DPO7000 Series are the new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs.
The family features exceptional performance in signal acquisition and analysis, operational simplicity and unmatched debugging tools to accelerate your day-to-day tasks. The largest screen in the industry and the intuitive user interface provide easy access to the maximum amount of information.
3.5 GHz Bandwidth Model for Serial and Digital Applications
2.5 GHz, 1 GHz, and 500 MHz Bandwidth Models for all Applications
Up to 40 GS/s Real Time Sample Rate on One Channel and up to 10 GS/s on All Four Channels
Up to 400 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation
>250,000 wfms/s Maximum Waveform Capture Rate
User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
MyScope® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency
Event Search and Mark to Facilitate the Comprehension of Event Relationships
Pinpoint™ Triggering Provides the Most Flexible and Highest Performance Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation
Small Footprint and Light Weight
12.1” Largest XGA Touch Screen Display in the Industry
Communications Mask Testing
Clock Recovery from Serial Data Streams
64 bit NRZ Serial Pattern Trigger for Isolation of Pattern-dependent Effects up to 1.25 Gb/s
NRZ Serial Test Pattern Triggering
