Tektronix DPO7354 in United States
Location:
United States
Price:
$24,900 USD

Specifications

Condition:
used
Status:
Discontinued
Channels:
4
Division:
Test and Measurement
Bandwidth:
3.5 GHz
Sample rate:
40.00 GSa/sec
Memory depth:
400 M record length on one channel
Subcategory:
Digital
Subcategory 2:
Oscilloscopes

Description

Tektronix DPO7354
Tektronix DPO7354 with 4 Tek P6139A probes.

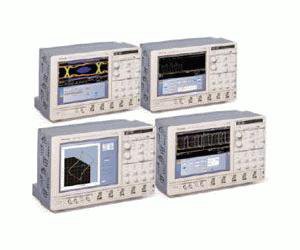

The DPO7000 Series are the new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs.
The family features exceptional performance in signal acquisition and analysis, operational simplicity and unmatched debugging tools to accelerate your day-to-day tasks. The largest screen in the industry and the intuitive user interface provide easy access to the maximum amount of information.
3.5 GHz Bandwidth Model for Serial and Digital Applications
2.5 GHz, 1 GHz, and 500 MHz Bandwidth Models for all Applications
Up to 40 GS/s Real Time Sample Rate on One Channel and up to 10 GS/s on All Four Channels
Up to 400 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation
>250,000 wfms/s Maximum Waveform Capture Rate
User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
MyScope® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency
Event Search and Mark to Facilitate the Comprehension of Event Relationships
Pinpoint™ Triggering Provides the Most Flexible and Highest Performance Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation
Small Footprint and Light Weight
12.1” Largest XGA Touch Screen Display in the Industry
Communications Mask Testing
Clock Recovery from Serial Data Streams
64 bit NRZ Serial Pattern Trigger for Isolation of Pattern-dependent Effects up to 1.25 Gb/s
NRZ Serial Test Pattern Triggering
Low-speed Serial Protocol Triggering (I2C,SPI, RS-232, CAN)
Technology-Specific Software Solutions Provide Built-in Domain Expertise for Ethernet, USB 2.0 Compliance Testing, Jitter, Timing, Eye Diagram, Power, DDR Memory bus analysis, CAN, and LIN Network Design
OpenChoice® Software with Microsoft Windows XP OS Enables Built-in Networking and Extended Analysis
