Tektronix TDS5104 in United States
Location:
United States
Price:
$9,000 USD
Model:
TDS5104

Specifications

Condition:
used
Status:
Discontinued
Division:
Test and Measurement
Bandwidth:
0
Sample rate:
0
Vertical units - magnitude:
Linear, dB, dBm
Additional vertical units - phase:
degrees, radians (option)
Subcategory:
Digital
Subcategory 2:
Oscilloscopes

Description

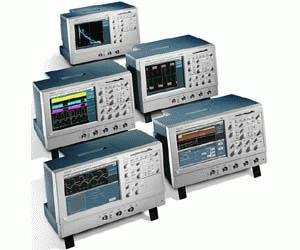

Tektronix TDS5104 2M/2A/USB/JT3
Prestige Test Equipment Inc.
specializes in the sale of quality new and refurbished test and measurement equipment.
Prestige repairs and calibrates used test equipment, provides rental equipment, and acquisitions underutilized equipment for cash/trade.
We assure peace of mind with every service and sale.
The TDS5000 Series digital phosphor oscilloscopes (DPO) deliver up to 1 GHz bandwidth, 5 GS/s real-time sample rate, 8 MB record length and 100,000 wfms/s maximum waveform capture rate. This performance, along with a suite of advanced triggers, intuitive user interface, and an open Windows platform, all in a compact bench-top package, provides exceptional value.
Digital phosphor oscilloscopes provide unmatched insight into signal behavior by displaying, storing and analyzing complex signals in real-time using three dimensions of signal information: amplitude, time and distribution of amplitude over time. The TDS5000 DPO Series delivers fast waveform capture rates, enabled by Tektronix proprietary DPX™ acquisition technology, saving minutes, hours or even days by quickly revealing the nature of faults so sophisticated trigger modes can be applied to isolate them.
The TDS5000 Series graphical user interface readily adapts to any operating style and environment, making the oscilloscope easy to learn and easy to use. Classic analog-style controls provide instant, front-panel access to the most frequently used functions while the large 10.4 inch (264 mm) display and extensive use of intuitive icons create a highly visual environment with explicit illustration of instrument features. Users can select traditional instrument-style buttons for navigation or switch to a Microsoft Windows menu bar. Waveform positions, cursor locations, and trigger level can be directly changed using a mouse or optional touch screen. A graphical drag-box can be used to select a waveform area for zooming, histogram analysis or measurement gating. The USB interface allows a mouse, keyboard, and other peripherals to be added without powering off the instrument. A context-sensitive help program supplements graphic control windows and encourages users to apply advanced capabilities to solve their problems.
1 GHz Bandwidth Model
4 Channel Model
300 ps Rise Time
8-bit Vertical Resolution
5 GS/s Maximum Real-time Sample Rate
Up to 8 MB Record Length (with option)
100,000 wfms/s Maximum Waveform Capture Rate
Waveform Measurements:
Amplitude - Amplitude, High, Low, Maximum, Minimum, Peak to Peak, Mean, Cycle Mean, RMS, Cycle RMS, Positive Overshoot, Negative Overshoot
Time - Rise Time, Fall Time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Period, Frequency, Delay
Combination - Area, Cycle Area, Phase, Burst Width
Waveform Processing/Math
Arithmetic - Add, subtract, multiply, and divide waveforms
FFT - Magnitude
Vertical Units - Magnitude: Linear, dB, dBm
Window Functions - Rectangular, Hamming, Hanning, Kaiser-Bessel, Blac
