Anritsu S332d in United States

Anritsu S332d in United States

Location:
United States
Price:
$6,650 USD
Manufacturer:
Anritsu

Specifications

Condition:
used
Status:
Discontinued
Amplitude range:
+20 dBm to -135 dBm
Low end frequency limit:
100.00 kHz
High end frequency limit:
3.00 GHz
Resolution bandwidth max:
1.00 MHz
Resolution bandwidth min:
1 kHz
Category:
Analyzers

Description

Anritsu S332d
Prestige Test Equipment Inc.
specializes in the sale of quality new and refurbished test and measurement equipment.
Prestige repairs and calibrates used test equipment, provides rental equipment, and acquisitions underutilized equipment for cash/trade.
We assure peace of mind with every service and sale.
Anritsu

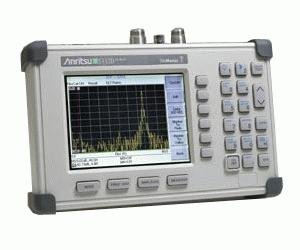

S332D
Cable and Antenna Analyzer, 25 MHz to 4.0 GHz, with built in DTF, Spectrum Analyzer, 100 kHz to 3.0 GHz
The Anritsu S332D spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Anritsu S332D. The CRT displays received signal strength (y-axis) against frequency ( x-axis).
Site Master S331D and S332D covering the 25 MHz to 4000 MHz are designed to accurately locate and identify RF cable feed-line and antenna system faults. These models are ideally suited for any experience level user in installing, commissioning, troubleshooting and maintaining today'''''''s wireless systems infrastructures including VHF, broadcasting, paging, cellular, PCS/GSM, 3G, ISM, WLAN and WLL applications.
The S332D features spectrum analysis capability and optional power meter capability in addition to Return Loss/SWR, Cable Loss and Distance-To-Fault (DTF) measurements, allowing field engineers and technicians the ability to easily identify and solve RF system problems such as coverage, interference, and other path related signal problems. S332D spectrum analysis ranges from 100 kHz to 3 GHz with one button measurements - Field Strength, Occupied Bandwidth (OBW), Channel Power, Adjacent Channel Power Ratio (ACPR), Interference Analysis and Carrier-to-Interference ratio (C/I).
Handheld, battery-operated design
Weighs less than 5 lbs.(including battery)
Built-in worldwide signal standards and frequency channels
Superior Immunity to RF interference
Long range, high resolution fault location
Pop-up cable menus containing over 95 cable types
Multilingual User Interface; English, French, Chinese, Japanese, Spanish, German
Intuitive and easy to use with On-Screen Test Set-Ups
Saves up to 20 Measurement Test Set-Ups
Saves up to 200 Measurement Traces
Alphanumeric Labeling of Saved Measurements
Automatic Time and Date Stamp of Saved Data
Rechargeable, Field Replaceable Battery
Distance Measurement in Feet and Meters
Information Screens Provide Cable Attenuation and Velocity of Propagation values
Reverse, Over Voltage and Under Voltage Protection
6 Markers, Limit Lines, and Segmented Limit Lines
RS232 Interface
