Agilent HP 54853A in United
Location:
United States
Price:
$9,900 USD
Model:
54853A

Specifications

Condition:
used
Status:
Discontinued
Channels:
4
Division:
Test and Measurement
Bandwidth:
2.5 GHz
Sample rate:
20.00 GSa/sec
Memory depth:
Up to 32 MB
Supported until:
Dec-2011
Subcategory:
4-channel
Subcategory 2:
Oscilloscopes

Description

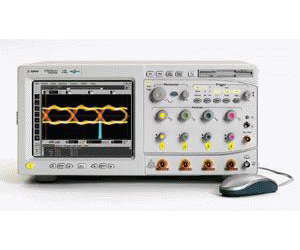

Agilent HP 54853A
The 54853A Infiniium oscilloscope and InfiniiMax 1131A probing system (1131A probe amp plus the E2668A single-ended connectivity kit and/or E2669A differential connectivity kit) provide full real-time bandwidth of 2.5 GHz and is supported on every channel by the 20 GSa/s sample rate. This industry-leading sample rate produces more accurate and repeatable measurements, avoiding measurement error and signal alliasing due to under sampling of the waveform. The innovative InfiniiMax probing system supports even the most demanding mechanical access requirements without sacrificing performance
2.5 GHz bandwidth real-time oscilloscope with 20 GSa/s sample rate available on all 4 channels simultaneously Up to 1 Mpts MegaZoom deep memory at 20 GSa/s and 32 Mpts MegaZoom deep memory at 2 GSa/s and slower sample rates Each InfiniiMax probe amplifier supports both differential & single-ended measurements for a more cost effective solution Unrivaled InfiniiMax probing accessories support browsing, solder-in and socket use models at the maximum performance available The 3.5 GHz InfiniiMax 1131A probe and E2668A/E2669A connectivity kits (all sold seperately) are recommended for the Infiniium 54853A oscilloscope New removable hard disk drive option (opt. 017)
