Agilent HP 8510SX in United

Agilent HP 8510SX in United States

Location:
United States
Price:
$45,000 USD
Manufacturer:
Agilent
Model:
8510SX

Specifications

Condition:
used
Status:
Discontinued
Division:
Test and Measurement
Alternative:
E8363B PNA Network Analyzer
Instrument type:
Vector, S-Parameter
Supported until:
Apr-2009
Discontinuance date:
Oct-2003
Low end frequency limit:
45.00 MHz
High end frequency limit:
26.50 GHz
Category:
Waveform
Subcategory:
Analyzers

Description

Agilent 8510SX Network Analyzers Ships 1 Day from US In Stock
The Agilent
8510SX

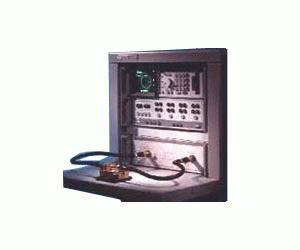

microwave vector network analyzer is a complete system configured with an Agilent 8510C vector network analyzer, a 26.5 GHz S-parameter test set, a 26.5 GHz synthesized sweeper, and a complete set of 3.5 mm measurement accessories. The instruments are integrated in the system rack prior to shipment from the factory. Installation is included at no additional charge. This preconfigured system is a complete solution for characterizing the linear behavior of either active or passive networks over the 45 MHz to 26.5 GHz frequency range. The Agilent 8510C displays measurement results in log/linear magnitude, phase, or group delay format on a large, color CRT with two independent, yet identical channels.
45 MHz to 26.5 GHz frequency range
Real-time error-corrected measurements
0.001 dB, 0.01 degree, 0.01 ns measurement resolution
Optional time domain and pulsed RF measurement capability
