Top Seller

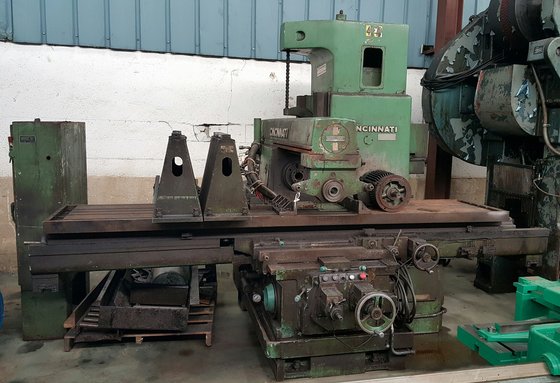

Cincinnati 750-2 750-25 VERCIPOWER HORIZONTAL
Location:
Holland, OH
Manufacturer:
Cincinnati
Model:
750-2

Specifications

Condition:
used
Stock number:
63659
Serial:
311073H5V-1
Feed motor:
7-1/2 HORSEPOWER
Cross travel:
18"
Area of table:
128" X 25"
Spindle motor:
50 HORSEPOWER
Rapid traverse:
150 IPM
Spindle speeds:
(24) 14 TO 1400 RPM
Over arm support:
YES
Snap set readers:
YES
Taper in spindle:
#50 NS
Longitudinal travel:
72"
Vertical head feeds:
(32) 3/16 TO 45 IPM
Floor to table center:
39-1/2"
Out board table supports:
YES
Center of table to column:
13-3/4 TO 31-3/4"
Longitudinal and cross feeds:
(32) 3/8 TO 90 IPM
Vertical travel of head on column:
24"
Subcategory:
Mill

Description

SERIAL ................................. 311073H5V-1
MODEL .................................. 750-2
AREA OF TABLE .......................... 128" X 25"
SPINDLE SPEEDS ......................... (24) 14 TO 1400 RPM
LONGITUDINAL AND CROSS FEEDS ........... (32) 3/8 TO 90 IPM
VERTICAL HEAD FEEDS .................... (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL .................... 72"
CROSS TRAVEL ........................... 18"
VERTICAL TRAVEL OF HEAD ON COLUMN ...... 24"
CENTERLINE OF SPINDLE TO TOP OF TABLE .. 3" MIN, 27" MAX
CENTER OF TABLE TO COLUMN .............. 13-3/4 TO 31-3/4"
RAPID TRAVERSE ......................... 150 IPM
TAPER IN SPINDLE ....................... #50 NS
FLOOR TO TABLE CENTER .................. 39-1/2"
OVER ARM SUPPORT ....................... YES
OUT BOARD TABLE SUPPORTS ............... YES
SNAP SET READERS ....................... YES
SPINDLE MOTOR .......................... 50 HORSEPOWER
FEED MOTOR ............................. 7-1/2 HORSEPOWER
