Top Seller
2000 23.62" Swing 19.68" Centers
Location:
Harrison, NJ
Price:
$17,500 USD
Manufacturer:
Fanuc lathes
Model:
Viper VT-20
Spindle Nose:
A2-6

Specifications

Condition:
used
Year:
2000
Serial number:
3299090104
Stock number:
146990
New:
2000
Bar capacity:
2"
Spindle nose:
A2-6
X-axis travel:
8.86"
Z-axis travel:
20.47"
Approx. weight:
12,950 LBS.
Swing over bed:
23.62"
Hole thru spindle:
2.44"
Main spindle motor:
AC 25/30 HP
Spindle speed range:
50-5000 RPM
Turret indexing time:
0.4 SEC.
Maximum turning length:
19.68"
Swing over cross slide:
15.75"
Number of tool stations:
12
Rapid traverse rate x/z:
708/1181 IPM
Maximum turning diameter:
15.75"
Shank height square tool:
1"
Subcategory:
Cnc machines

Description

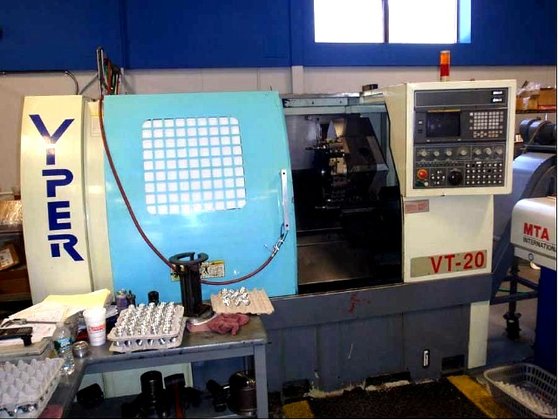

MIGHTY VIPER VT-20 TWO AXIS CNC TURNING CENTER
NEW: 2000
SPECIFICATIONS:
SWING OVER BED .................. 23.62"
SWING OVER CROSS SLIDE .......... 15.75"
MAXIMUM TURNING DIAMETER ........ 15.75"
MAXIMUM TURNING LENGTH .......... 19.68"
X-AXIS TRAVEL ................... 8.86"
Z-AXIS TRAVEL ................... 20.47"
SPINDLE NOSE .................... A2-6
HOLE THRU SPINDLE ............... 2.44"
SPINDLE SPEED RANGE ............. 50-5000 RPM
BAR CAPACITY .................... 2"
NUMBER OF TOOL STATIONS ......... 12
TURRET INDEXING TIME ............ 0.4 SEC.
SHANK HEIGHT SQUARE TOOL ........ 1"
SHANK DIAMETER FOR BORING BAR ... 1.57"
RAPID TRAVERSE RATE X/Z ......... 708/1181 IPM
MAIN SPINDLE MOTOR .............. AC 25/30 HP
APPROX. WEIGHT .................. 12,950 LBS.
EQUIPPED WITH:
- FANUC 18T CNC CONTROL
- 8" 3 JAW HYDRAULIC CHUCK
- 12 POSITION TURRET
- CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS
- ALL AVAILABLE MANUALS
To view a video of this machine under power copy and past the following link in your web brwoser:
