Location:
Elk Grove Village, IL
Manufacturer:
Amada presses
Capacity:
2.75" Dia. thru 0.25" (mild steel)
Stroke:
1.25"

Specifications

Condition:
used
Cnc type:
Fanuc 6M
Ram stroke:
1.25"
Turret style:
"Thick"
Hits per minute:
200 (on 1" centers)
Punching capacity:
2.75" Dia. thru 0.25" (mild steel)
Turet tool stations:
44
Currently under power:
Yes
Turret rotation speed:
30 RPM
Maximum punch diameter:
6"
Nominal rated capacity:
55 Tons
Hits per minute (nibbling):
300
Maximum material thickness:
0.25"
Rapid traverse to x and y axes:
2,000 IPM
Subcategory:
Cnc turret presses
Subcategory 2:
Fabricating machinery

Description

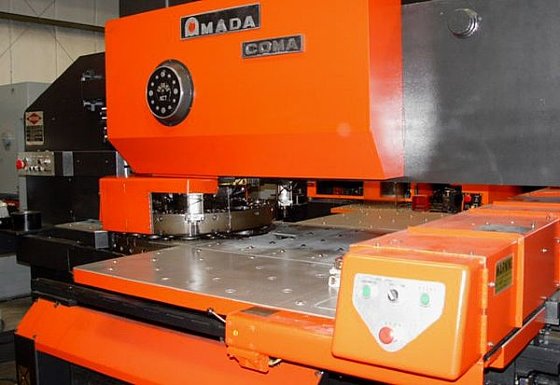

This Amada Coma CNC Turret Press is available for insepction under power in the USA.
