Location:
Elk Grove Village, IL
Manufacturer:
RAM press brakes
Model:
45-10
Stroke:
Variable from 0 to 6"
Capacity:
45 Tons

Specifications

Condition:
used
Back gauge type:
CNC operated 2-axis system (controls back gauge in-out and ram stroke)
Depth of throat:
9"
Length of stroke:
Variable from 0 to 6"
Additional features:
Rapid approach, Variable pressing speed, rapid return, Shadow IV light curtains, Die riser-block, Electric foot switch.
Year of manufacture:
"awaiting info."
Hydraulic pump motor:
10 HP AC
Open height, over bed:
15"
Currently in operation:
Yes
Nominal rated capacity:
45 Tons
Distance between housings:
8'6" (102")
Bending capacity (mild steel):
9' X 14 Gauge / 7' X 12 Gauge / 6' X 11 Gauge / 4' X 10 Gauge
Overall length of bed and ram:
10' (120")
Present electrical arrangement:
3-Phase, 60-Cycles, 550-Volts AC incoming power

Description

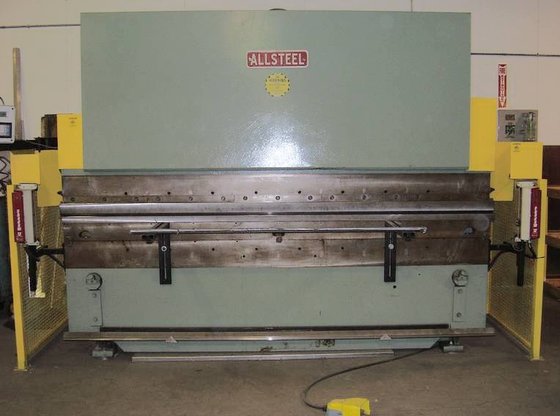

102" Between housings, Hydraulic operation, 2-Axis CNC back gauge, Light curtains
Additional features:
Rapid approach, Variable pressing speed, rapid return, Shadow IV light curtains, Die riser-block, Electric foot switch.
