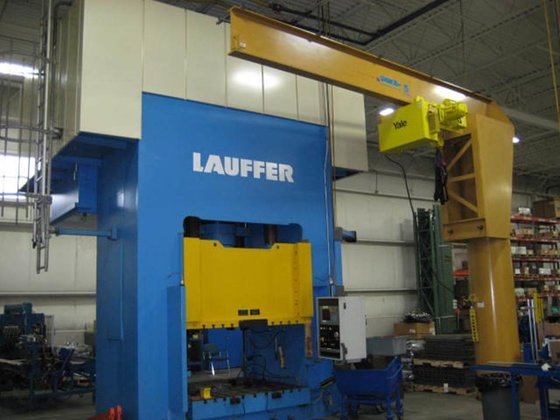

2002 Lauffer RZX-1200 Straight Side
Location:
Chicago, IL
Manufacturer:
Allen presses
Model:
RZX-1200 Straight Side Triple Action Deep Draw Press

Specifications

Condition:
used
Year:
2002
Slide:
450 Tons with 19.6" Stroke
Accuracy:
.0004" positioning and +/- 0.5% tonnage force
Daylight:
39.3" at TDC and 19.6" at BDC
Ram area:
78.7" X 78.7"
Ram speed:
Fast Advance 1180 IPM, Max Press Speed 130 IPM
Shut height:
20"
Upper punch:
750 Tons with 30" Stroke
Clamping area:
78.7" X 78.7"
Equipped with:
Allen Bradley PLC Control, Hilma Hydraulic Clamping Packaging, Sick Light Curtain Front/Back, Top/Bottom Hydraulic Clamping, (8 Sliding Clamps, Hydraulic Roll Blocks, Power Pack
Cushion speeds:
Fast Advance 614 IPM
Slide motor drive:
75 HP
Upper/ lower drive:
150HP (2)
Total pressing force:
1200 Tons
Depth of pit required:
60"
Cushion: 750 ton lower punch load with:
9.8" Stroke
Subcategory:
Presses, hydraulic
Subcategory 2:
Fabricating machinery

Description

1200 ton Pressing Force, 30" Stroke, Fast Advance 1180 IPM, 78" x 78" Bed
