Top Seller
1996 18.9" Swing 25.59" Centers
Location:
Harrison, NJ
Price:
$21,500 USD
Manufacturer:
Okuma lathes
Model:
Cadet L1420/650
Spindle Bore:
3.15"
Distance between Centers:
25.59"

Specifications

Condition:
used
Year:
1996
Serial number:
247
Stock number:
151373
Turret:
V12
Spindle bore:
3.15"
Spindle nose:
A2-8
Spindle speed:
65-3200 RPM
X-axis travel:
9.05"
Z-axis travel:
26.38"
Approx. weight:
13,600 LBS
Number of axis:
2
Tailstock taper:
MT#5
Number of speeds:
INFINITELY VARIABLE
Mainspindle motor:
20/15HP
Swing over saddle:
18.90"
Tailstock quill dia:
3.94"
Max. turning diameter:
14.17"
Tailstock quill stroke:
4.72"
Distance between centers:
25.59"
Subcategory:
Cnc machines

Description

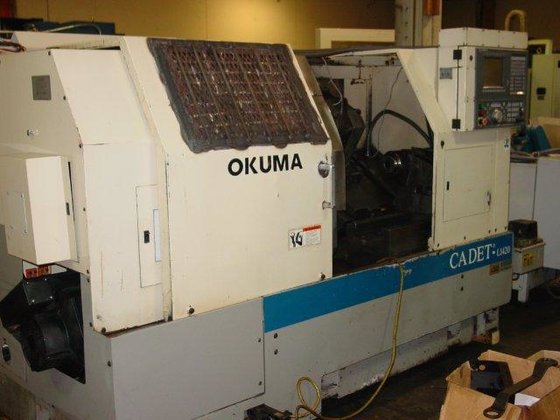

OKUMA CADET L1420 CNC TURNING CENTER, NEW: 1996
SPECIFICATIONS:
SWING OVER SADDLE..................... 18.90"
DISTANCE BETWEEN CENTERS.............. 25.59"
MAX. TURNING DIAMETER................. 14.17"
X-AXIS TRAVEL ........................ 9.05"
Z-AXIS TRAVEL ........................ 26.38"
SPINDLE SPEED......................... 65-3200 RPM
NUMBER OF SPEEDS...................... INFINITELY VARIABLE
SPINDLE NOSE.......................... A2-8
SPINDLE BORE.......................... 3.15"
NUMBER OF AXIS........................ 2
TURRET................................ V12
TAILSTOCK QUILL DIA. ................. 3.94"
TAILSTOCK TAPER ...................... MT#5
TAILSTOCK QUILL STROKE ............... 4.72"
MAINSPINDLE MOTOR .................... 20/15HP
APPROX. WEIGHT ....................... 13,600 LBS
EQUIPPED WITH:
- OSP 700L CONTROL w/IGF
- 12" 3-JAW HYD. CHUCK
- 12 POSITION TURRET
- TAILSTOCK
- CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS AND MANUALS
