Top Seller

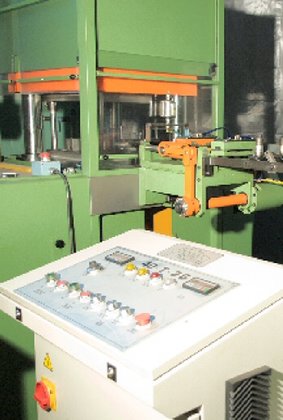

1998 OMPSA FC2G High-Speed Double
Location:
Chicago, IL
Manufacturer:
OMPSA
Model:
FC2G High-Speed Double Knuckle Joint Punch Press
Capacity:
75 Tons
Stroke:
Variable from 1.02" to 1.34"

Specifications

Condition:
used
Year:
1998
Length of stroke:
Variable from 1.02" to 1.34"
Strokes per minute:
Variable from 40 to 210
Currently under power:
Yes
Bed area between posts:
21" X 12.5"
Nominal rated capacity:
75 Tons
Shut height, sdau, over bed:
9.45" (min.) to 11.81" (max.)

Description

75 Tons, 1.02" to 1.26" Variable stroke length, 21" X 12.5" Bed area, 40 to 210 SPM.
Additional features:
Air clutch and brake, 10 HP AC Main drive motor, Under-driven design, Operator's push-button control panel, Stock feeder / straightener, (4) Leveling pads.
