Top Seller

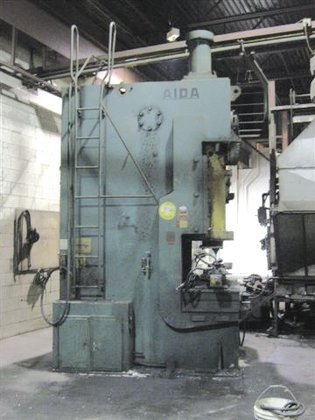

1975 Aida "Hy-Flex" PDC-15 Gap
Location:
Chicago, IL
Manufacturer:
Aida presses
Model:
PDC-15 Gap Frame Double Crank Punch Press
Capacity:
150 Tons
Stroke:
7.87"

Specifications

Condition:
used
Year:
1975
Area of bed:
76.7" (L to R) X 25.3" (F to B)
Area of ram:
58.2" (L to R) X 21.5" (F to B)
Clutch system:
Air clutch and brake
Length of stroke:
7.87"
Adjustment of ram:
3.25"
Strokes per minute:
Variable from 30 to 60 SPM
Thickness of bolster:
4.5"
Nominal rated capacity:
150 Tons
Shut height, sdau, over bed:
22.12"
Width of opening through back:
59"

Description

15 Ton capacity, 7.87" Stroke, 22.1" Shut height, 76.7" X 25.3" Bed area, Air clutch.
