Location:
Elk Grove Village, IL
Manufacturer:
Verson
Model:

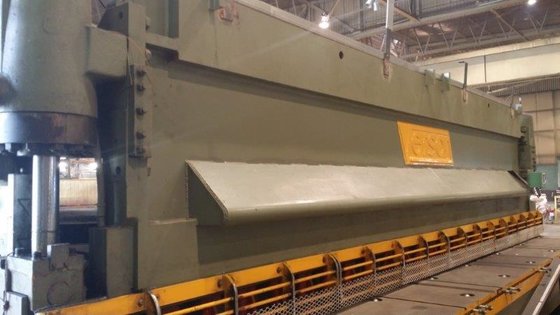

HS-500-24 1/2" x 24' Hydraulic Power Squaring Plate Shear
Capacity:
60 Ton

Specifications

Condition:
used
Stroke:
13"
Pressure:
1700 PSI
Gap length:
10"
Equipped with:
36" Front Operated Power Back Gauge (inch / metric ), Squaring Arm
Back gauge range:
36"
Blade rake angle:
Adjustable 0 - 7/10 IN./FT
Holddown capacity:
60 Ton
Maximum cutting width:
240"
Nominal rated capacity:
24' X 1/2"
Distance between housings:
18'

Description

1/2" x 24' Capacity, 36" Front Operated Power Back Gauge, Squaring Arm
