Location:
Elk Grove Village, IL
Manufacturer:
Capacity
Model:
No.6 Hydraulic Horizontal Tube Bender (1960's)
Capacity:
0.75" Dia.

Specifications

Condition:
used
Year:
1960
Hydraulic pressure:
1,000 PSI
Additional features:
Large quantity of tooling.
Hydraulic pump motor:
3 HP AC
Maximum angle of bend:
280 Degrees
Maximum radius of bend:
9"
Bending capacity (iron pipe):
0.75" Dia.
Bending capacity (steel bar):
2" X 0.25" (the easy way)
Bending capacity *steel bar):
1" X 0.25" (the hard way)
Bending capacity (steel tube):
1.25" Dia. X 16 gauge wall
Bending capacity (round steel bar):
0.625" Dia.

Description

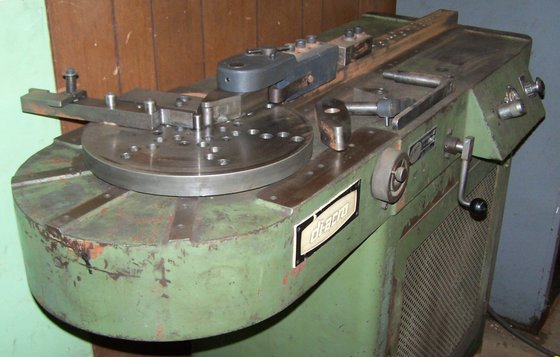

This Di-Acro #6 Hydraulic Tube Bender was recently removed from service, but can be powered-up for your inspection.
