1966 14" Screen J &
Location:
Harrison, NJ
Manufacturer:
J & L
Model:
PC14-A

Specifications

Condition:
used
Year:
1966
Serial number:
E-37289
Stock number:
153046
Vertical:
4"
Electrical:
1/60/118 VOLT
Table size:
6" X 18"
Floor space:
33"LR X 40"FB X 70"HIGH
Longitudinal:
6"
Screen diameter:
14"
Approximate weight:
900 LBS
Cross travel for focusing:
1.375"
Subcategory:
Inspection
Subcategory 2:
Comparators

Description

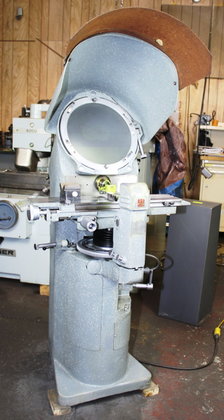

14" JONES & LAMSON "MADE IN USA" OPTICAL COMPARATOR
MODEL: PC-14A S/N: E-37289 NEW: 1966
SCREEN DIAMETER ................................... 14"
TABLE SIZE .................................... 6" X 18"
MEASURING CAPACITY (TABLE TRAVEL):
LONGITUDINAL ....................................... 6"
VERTICAL ........................................... 4"
ANGULAR MEASURING CAPACITY .... 360 DEG. CHART ROTATION
CROSS TRAVEL FOR FOCUSING ...................... 1.375"
HELIX ADJ. - TABLE SWIVELS, LEFT OR RIGHT ..... 15 DEG.
ELECTRICAL .............................. 1/60/118 VOLT
FLOOR SPACE ................... 33"LR X 40"FB X 70"HIGH
APPROXIMATE WEIGHT ............................ 900 LBS
EQUIPPED WITH:
HORIZONTAL PROJECTION
LIGHT VISOR
10X LENS
TABLE MOVES ON ROLLER BEARINGS
SINGLE PHASE/115 VOLT ELECTRICS
** INSPECT UNDER POWER IN HARRISON, N.J. **
*** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT ***
