Location:
Elk Grove Village, IL
Manufacturer:
Rapid boring mills
Model:

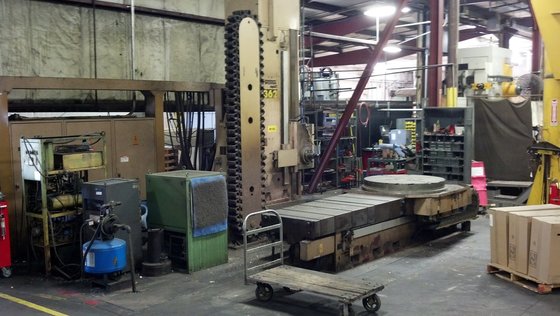

Rapid 1/ R6 CNC Floor Type Horizontal Boring Mill
Spindle Diameter:
4.7" (120mm)

Specifications

Condition:
used
B axis:
0-360 degrees contouring
W axis:
37" (940mm) Column Travel
X axis:
78.74" (2000mm)
Y axis:
62.99" (1600mm)
Z axis:
23.62" (600mm) Quill
Feed range:
.001" to 400" ipm
Rapid range:
400" ipm
Equipped with:
Allen Bradley 7320 CNC Control, 80 Tool Offsets
Spindle taper:
Cat 50
Table diamter:
51.18" (1300mm)
Spindle speeds:
12-1600 rpm
Spindle diameter:
4.7" (120mm)
Spindle drive dc:
53 HP (40kw)
Table weight capacity:
13227lbs (6000 kg)

Description

4.7" Diameter Spindle, 50 Taper, Rotary Table, 78" Cross, Allen Bradley CNC
