Top Seller

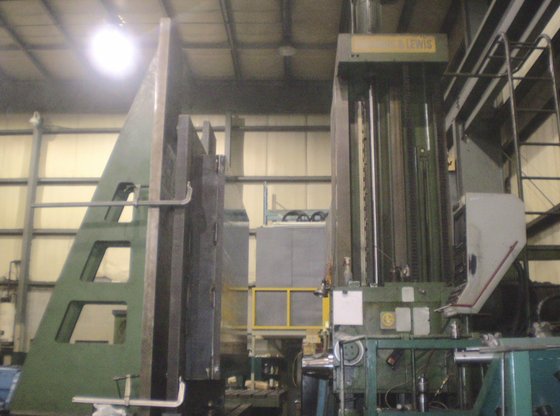

Giddings & Lewis 70H5T 5-Axis
Location:
Chicago, IL
Model:
70H5T 5-Axis Table Type CNC Horizontal Boring Mill

Specifications

Condition:
used
Cnc type:
Heidenhain 406
Table area:
144" X 72"
Spindle speeds:
1,000 RPM (max.)
Taper in spindle:
No.50
Rotary table area:
60" X 60"
Currently under power:
Yes
Diameter of spindle bar:
5"
X-axis travel (table cross):
138"
Rotary table index increment:
0.001 Degrees (Full 5th axis)
Z-axis travel (saddle long.):
84"
W-axis travel (spindle bar in-out):
36"
Y-axis travel (spindle-head vert.):
98"

Description

5" Spindle, 138" Cross travel, 5th-Axis rotary table, 1,000 RPM, Heidenhain 406 CNC.
