Location:
Elk Grove Village, IL
Manufacturer:
OM boring mills
Model:

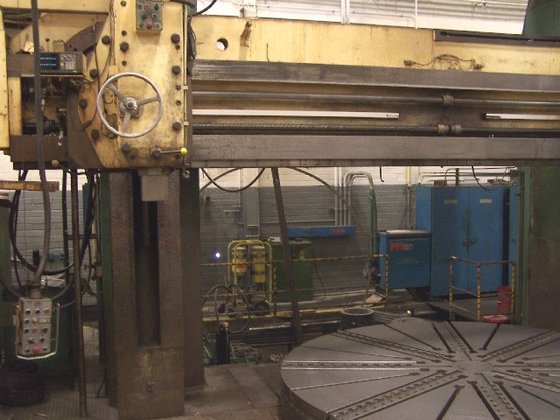

TMD 35/50 Adjustable Rail Vertical Boring Mill

Specifications

Condition:
used
Equipped with:
Left And Right Hand Rams, Digital Readouts On Each Ram, Pendant Control For Each Ram
Maximum swing:
196.8"
Table diameter:
137.8"
Feed rate (16 steps):
0.00196 To 0.39 Ipr
Vertical travel of rams:
71"
Maximum turning height above table:
133.8"
Table speeds (16 steps in 4 ranges):
0.26 To 35 Rpm
Maximum weight of work piece on table:
132,000 Lbs
Maximum height from bottom of base to top:
24' 2"

Description

138" (6) Jaw Chuck, 196" Swing, (2) Ram Heads, Digital Readouts
