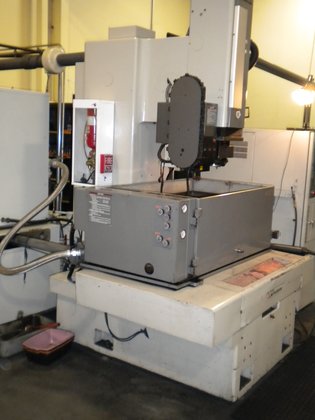

1987 Mitsubishi M55K CNC Ram
Location:
Chicago, IL
Manufacturer:
Mitsubishi
Model:
M55K CNC Ram Type Sinker Electric Discharge Machine
Capacity:
65 Gal.
Weight:
2,200 lbs

Specifications

Condition:
used
Year:
1987
Daylight:
9.8"-23.6"
Equipped with:
12" X 18" Magnetic Chuck, 16 Position 3R ATC, C-Axis Programmable
Max workpiece:
37" x 23.5" x 12"
Table dimensions:
31.5"x23.6"
Tank size (inside):
39" x 25.5" x 16"
Dielectric capacity:
65 Gal.
Max workpiece weight:
2,200 lbs
Max weight of electrode:
440 lbs
Electrode mount dimension:
11.8" x 9.8"
Table stroke; front to back:
13.98"
Table stroke; right to left:
17.72"
Main spindle servo-feed stroke:
13.98"

Description

39" X 25" X 16" Travels, C-Axis, 12" X 18" Magnetic Chuck, 16 ATC
