Location:
Elk Grove Village, IL
Manufacturer:
EDM Solutions
Model:

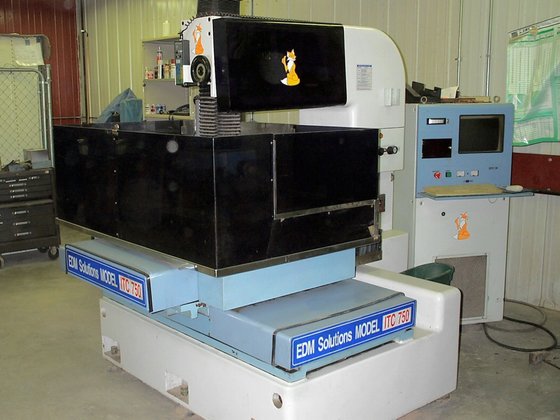

ITW-750 5-Axis Wire Type CNC Electrical Discharge Machine
Weight:
1,360 Pounds

Specifications

Condition:
used
Year:
1998
Wire tension:
0.88 to 7.7 Pounds (force)
U-axis travel:
1.18"
V-axis travel:
1.18"
X-axis travel:
17.72"
Y-axis travel:
29.53"
Z-axis travel:
11.81"
Useable wire diameter:
0.004" to 0.014"
Maximum taper angle cut:
+ / - 13 Degrees on 3.94" thick work-piece
Maximum work-piece size:
25.59" (L to R) X 41.34" (F to B)
Maximum work-piece weight:
1,360 Pounds

Description

17.72" X 29.53" X 11.81" Travels, 5-Axis, 25.59" X 41.34" Maximum work-piece size.
