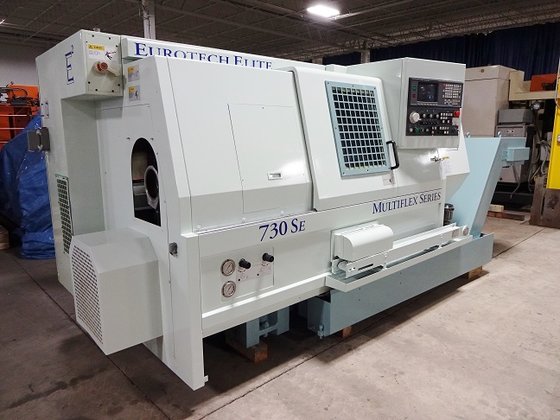

1998 Eurotech Elite Multiflex Series
Location:
Chicago, IL
Manufacturer:
Fanuc lathes
Model:
730SE CNC Turning Center
Spindle Nose:
A2-5

Specifications

Condition:
used
Year:
1998
Complete with:
Fanuc 18-T, Parts Catcher, Chip Conveyor, Sub Spindle
Number of turret stations:
12
Bar capacity (sub spindle):
1.625"
Spindle nose (sub spindle):
A2-5
Bar capacity (main spindle):
2.75"
Spindle motor (sub spindle):
10 HP
Spindle nose (main spindle):
A2-6
Spindle motor (main spindle):
35 HP
Max turning diameter (sub spindle):
6"
Spindle speeds (main & subspindle):
4,000 RPM
Max turning diameter (main spindle):
18.5"
Max turning length (main & sub spindle):
19.69"

Description

Sub Spindle, Collet Chuck, Chip Conveyor, Parts Catcher, Fanuc 18i-T
