Top Seller

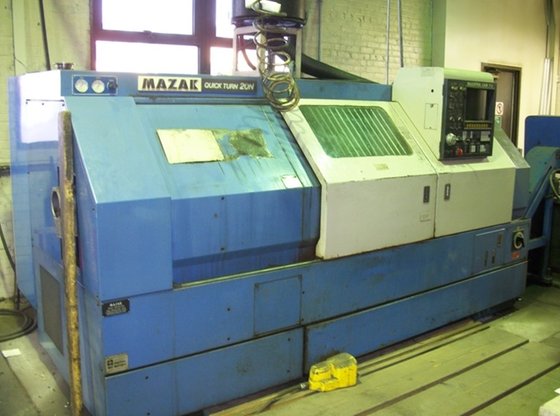

Mazak QT20N 2 Axis Slant
Location:
Chicago, IL
Manufacturer:
Mazak lathes
Model:
QT20N 2 Axis Slant Bed CNC Lathe
Spindle Bore:
3.15" / 2.76"

Specifications

Condition:
used
Turret type:
8 Position Turret
Equipped with:
Mazatrol CAM T-2 CNC 10" 3 Jaw Howa Chuck Tailstock Chip conveyor
Spindle motor:
25 HP
X-axis travel:
7.125"
Z-axis travel:
40.5"
Spindle speeds:
40 - 3000 RPM
Max. swing over bed:
17.32" / 10"
Max. machining length:
40.69"
Maximum machining diameter:
10.62"
Spindle bore / bar capacity:
3.15" / 2.76"

Description

10" Chuck, 2 Axis, Slant Bed, 8 Position Turret, Mazatrol CAM T-2 CNC
