Location:
Elk Grove Village, IL
Manufacturer:
Siemens lathes
Model:
TUG-54MN / 1000
Distance between Centers:
39.3"

Specifications

Condition:
used
Year:
2004
Cnc type:
Siemens Sinumerik 810D
Tool turret:
8-Positions
X-axis travel:
10.63"
Z-axis travel:
36.42"
Spindle speeds:
5 to 3,000 RPM (in 1 RPM increments)
Additional features:
12" 3-Jaw universal thru-hole air chuck with front-mounted cylinder, Tailstock with manual quill, Sliding splash guard, Coolant system, Various turret tool holders, Machine and control manuals.
Spindle drive motor:
12 Kw (16 HP) AC
Swing over bed ways:
22.05"
Year of manufacture:
2004
Hole through spindle:
2.95"
Currently in operation:
Yes
Swing over cross slide:
17.72"
Distance between centers:
39.3"
Rapid traverse to x-axis:
236 IPM
Rapid traverse to z-axis:
315 IPM

Description

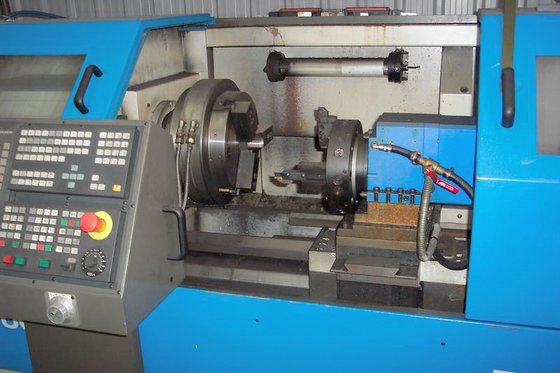

22.05" Swing, 39.3" Centers, 3,000 RPM, 8-Position tool turret, Siemens 810D CNC.
Additional features:
12" 3-Jaw universal thru-hole air chuck with front-mounted cylinder, Tailstock with manual quill, Sliding splash guard, Coolant system, Various turret tool holders, Machine and control manuals.
